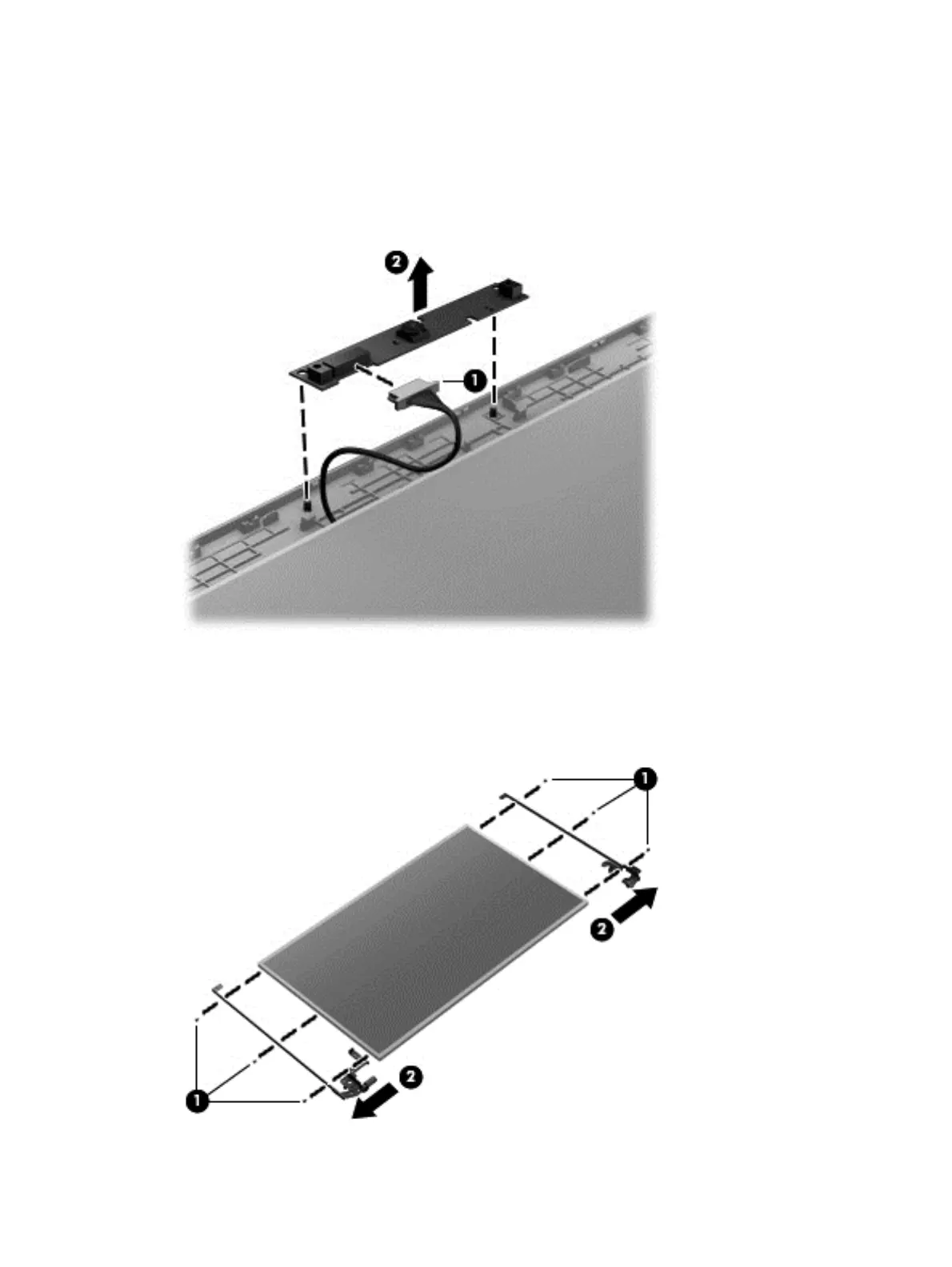

10. If it is necessary to replace the webcam module (shown in the following image) or microphone
module from the display enclosure, gently pull the module away from the double-sided tape on
the display enclosure (1) and disconnect the cable from the module (2).
The webcam module is available using spare part number 683508-001.
The microphone module is removed using the same procedure and is available using spare part
number 647675-001.
11. If it is necessary to replace the display hinges, remove the Phillips PM2.5×3.0 screws (1) that
secure each display hinge to the display panel.
12. Remove the display hinges (2).
Display hinges are available using spare part number 646279-001.
82 Chapter 4 Removal and replacement procedures
