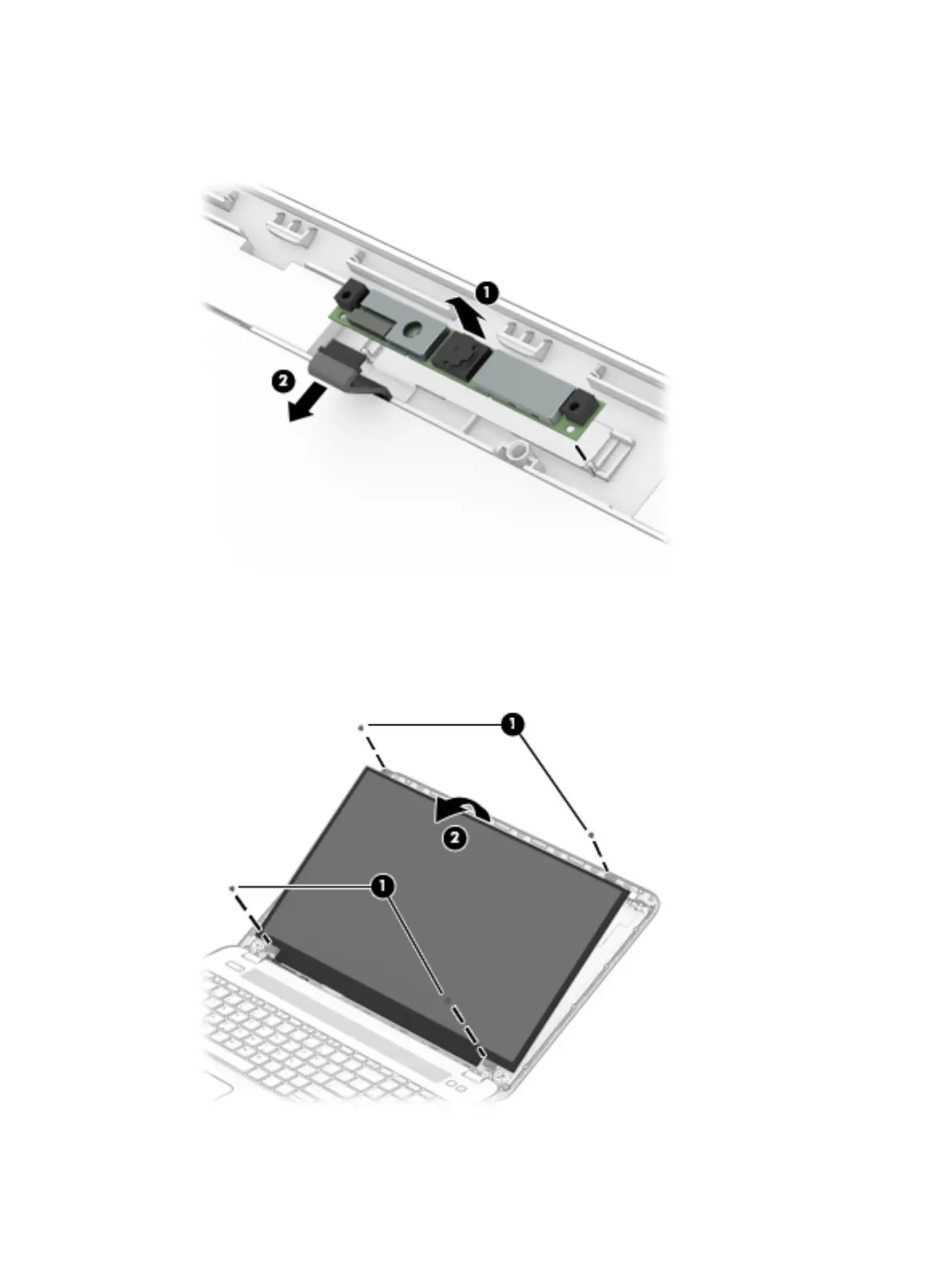

9. If it is necessary to replace the webcam or microphone module, gently pull the module away from the
double-sided tape on the display enclosure (1), and then disconnect the cable from the module (2).
The webcam module is available using spare part number 805139-009.
10. If it is necessary to remove or replace the display panel, remove the 4 Phillips PM2.0×3.0 screws (1) that
secure the display panel to the enclosure.
11. Rotate the display panel onto the keyboard (2) to gain access to the display cable connection on the
back of the panel.
Component replacement procedures 85
