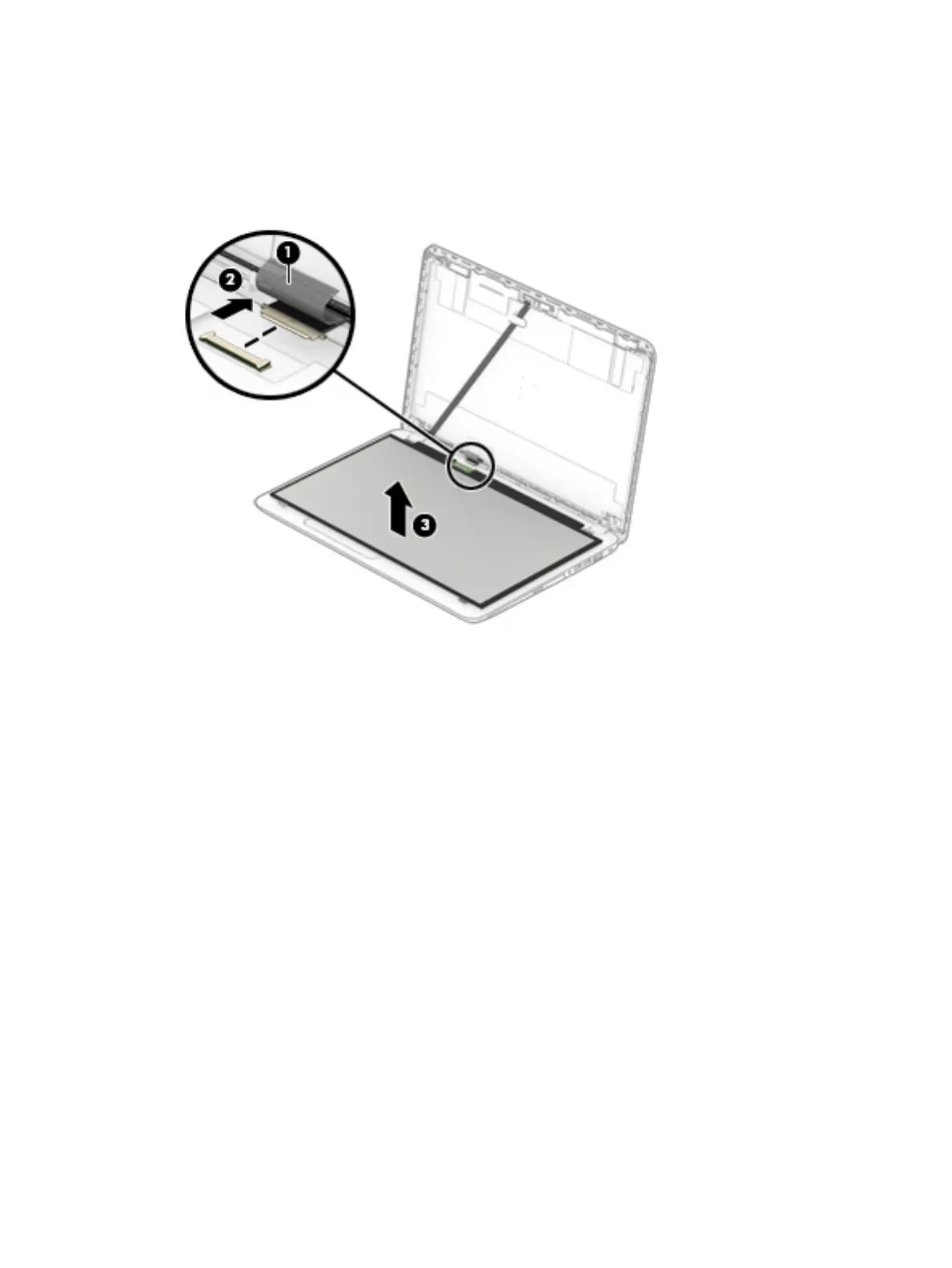

12. On the back of the display panel, release the adhesive strip that secures the display panel cable to the
display panel (1), and then disconnect the cable (2).
13. Remove the display panel from the display enclosure (3).
Raw display panels are available using spare part number 860030-002 for HD panels and 809001-003
for FHD panels.
14. If it is necessary to remove or replace the hinge covers, remove the 2 Phillips PM2.0×3.0 screws (1) that
secure the hinge covers to the display enclosure.
86 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
