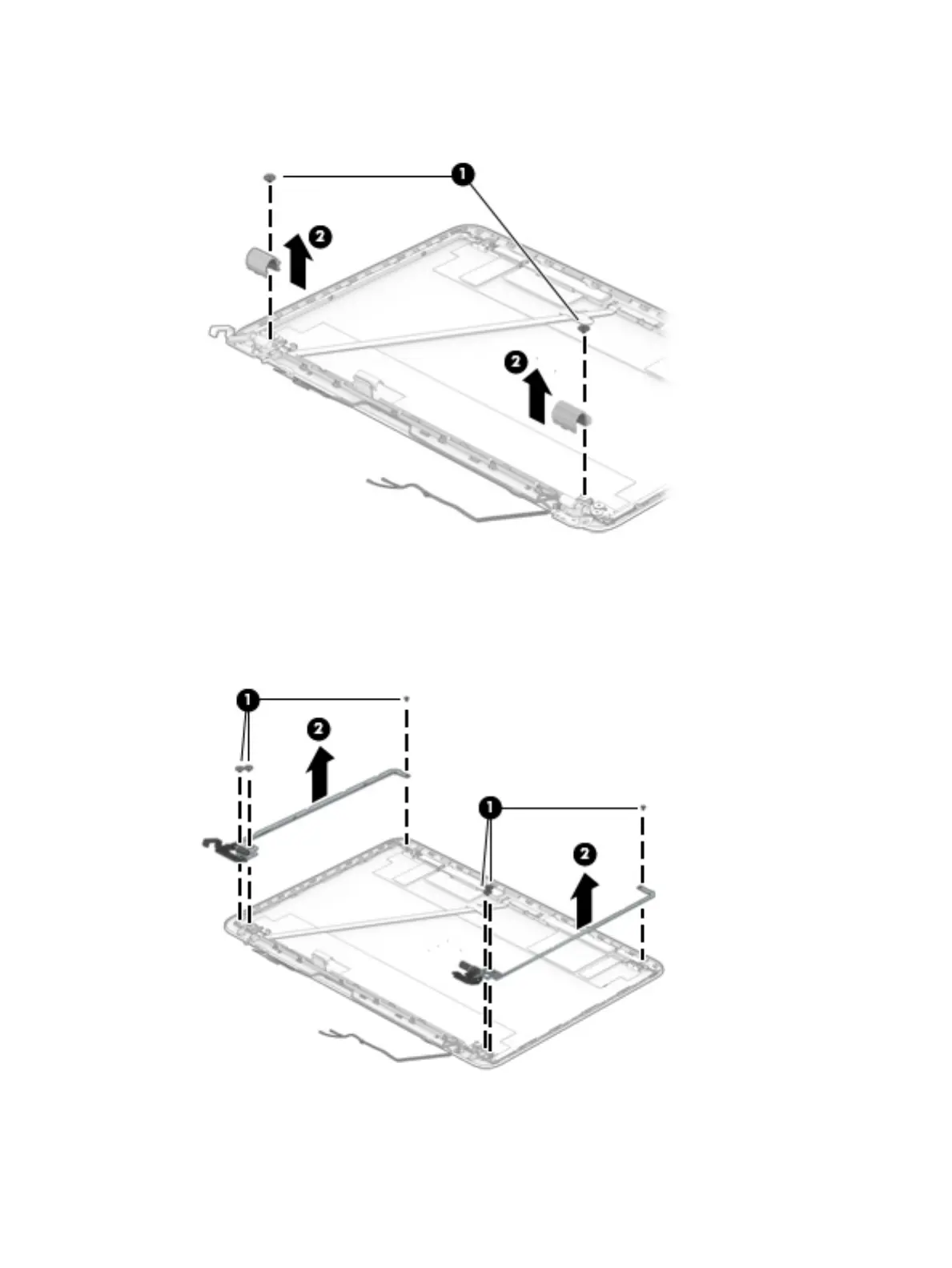

15. Remove the hinge covers from the display hinges (2).
Display hinge covers are available using spare part number 905763-001.
16. If it is necessary to remove or replace the display hinges, remove the 6 Phillips PM2.5×2.5 screws (1)
that secure both display hinges to the display enclosure.
17. Remove the display hinges from the display enclosure (2).
Display hinges are available in the Display Hinge Kit using spare part number 905762-001.
18. If it is necessary to replace the display/webcam cable, remove the webcam cable from the clips in the
display enclosure (1), and the clips at the bottom of the display enclosure (2).
Component replacement procedures 87
