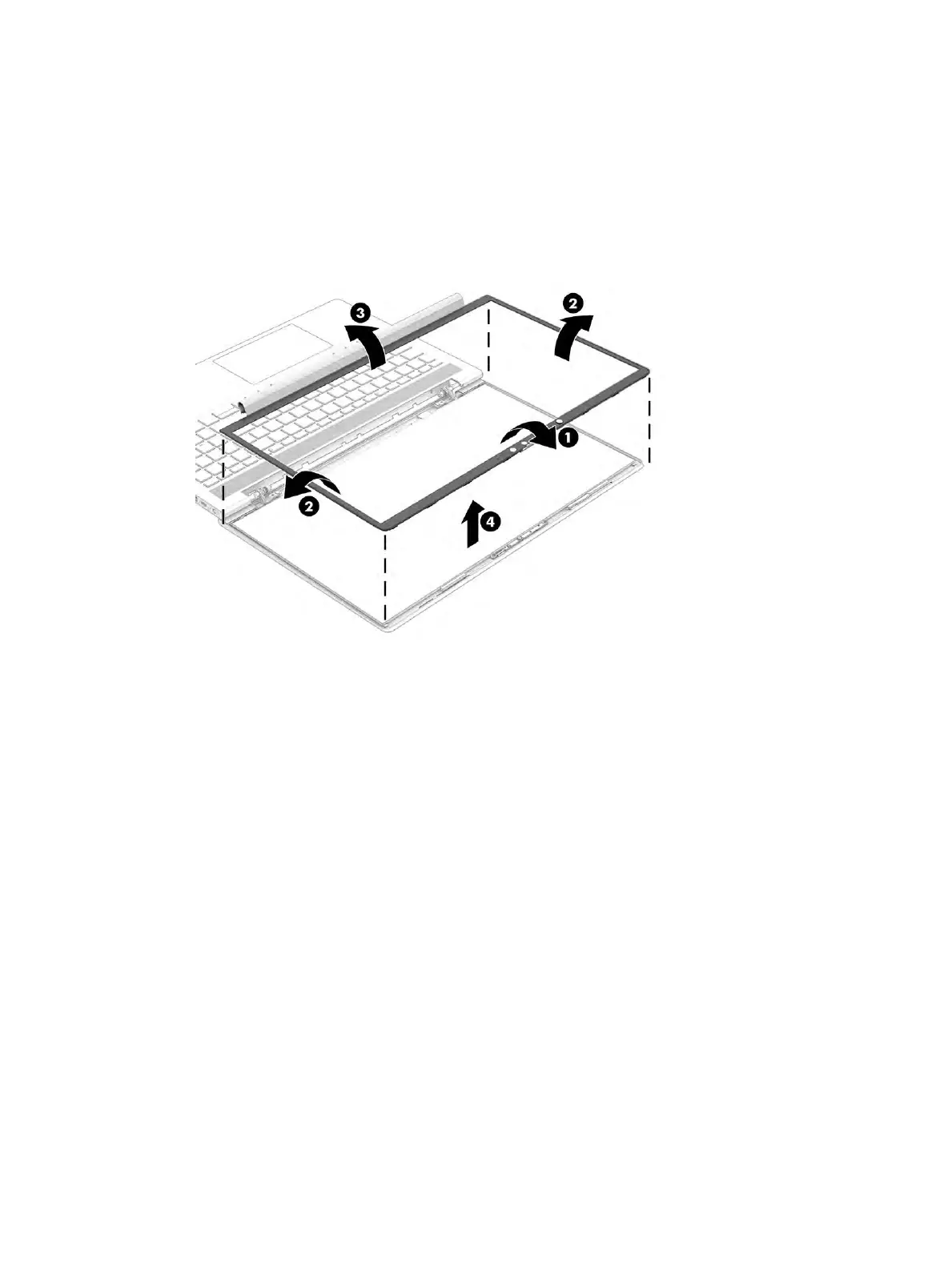

a. Flex the top (1), the left and right sides (2), and then the bottom of the bezel (3) to release it.
b. Remove the bezel from the display (4).
The display bezel is available as the following spare part numbers:
M21991-001: Models without a camera
M21992-001: Models with an HD camera
M21993-001:Models with an HD + IR camera
2. If you need to remove the display panel:
a. Check the t of the various alignment tools on the display assembly. Make note of the best tting
alignment tool to use when replacing the display panel.
b. The display panel is secured to the display enclosure with tape that is installed under the left and
right sides of the panel. You have to pull the tape out from behind the panel from all four corners
of the panel. To remove the panel, use tweezers to grasp and pull the end of the tape out from
behind the panel (1). While turning the tweezers, wrap the tape around the tweezers (2) as you
continue to pull the tape out from behind the display panel. You must pull the tape multiple times
before it is completely removed.
Component replacement procedures 49
