11. If you need to remove the display panel/camera cable, peel the cable up o the inside of the display rear
cover.
The display panel/camera cable is available as spare part number M47416-001.

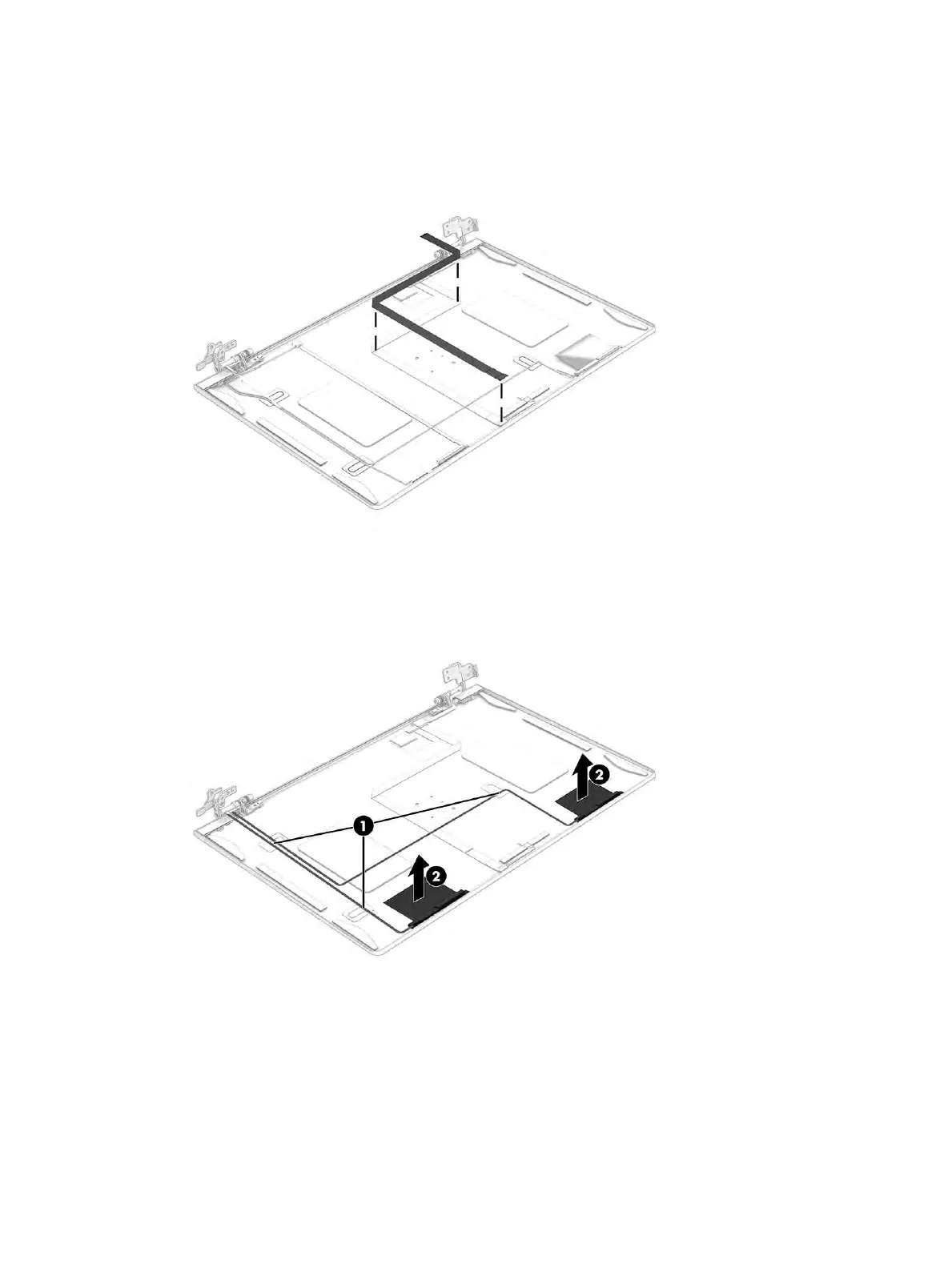

12. If you need to remove the WLAN antennas and cables, remove the cables from the plastic clips at the
bottom-right and the clips on the inside of the display rear cover (1), and then peel the antennas o the
cover (2). The WLAN antennas and cables are available as spare part number M21727-001.
The display rear covers are available as the following spare part numbers:
M21987-001: Models with a 250 nit panel
M21989-001: Models with a 400 nit panel
Reverse this procedure to reassemble and replace the display assembly.
