3.

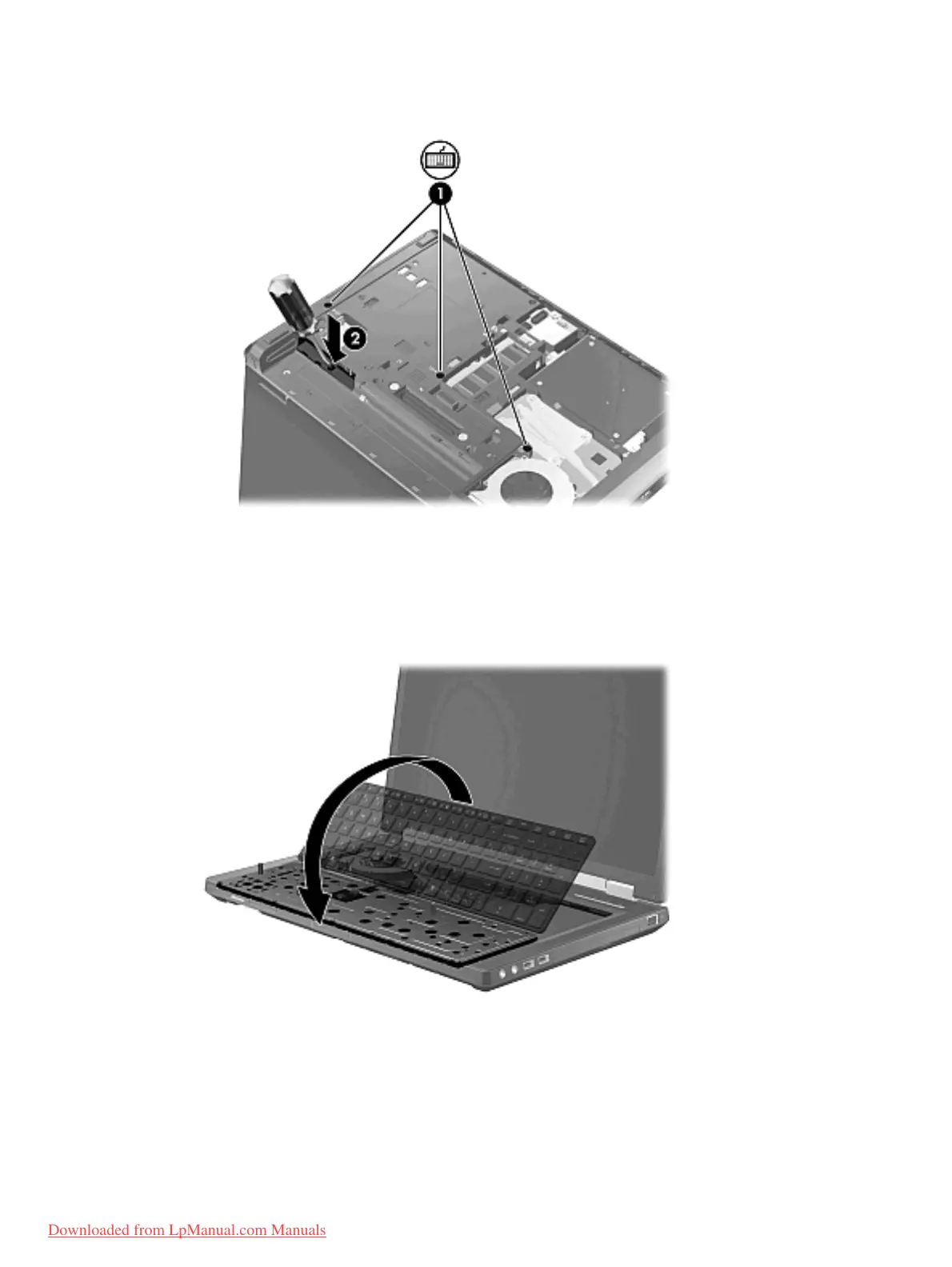

Release the keyboard by pressing down on the keyboard release cut-out (2).
4. Turn the computer right-side up, with the front toward you.
5. Open the computer as far as possible.
6. Lift the top edge of the keyboard, and then rotate the keyboard forward until it rests upside-down
on top of the TouchPad.
7. Release the zero insertion force (ZIF) connector to which the keyboard cable (1) is attached, and
then disconnect the keyboard cable from the system board.
Component replacement procedures
67
