3.
Remove the WWAN module (3) by pulling the module away from the slot at an angle.
NOTE: WWAN modules are designed with a notch (4) to prevent incorrect insertion.

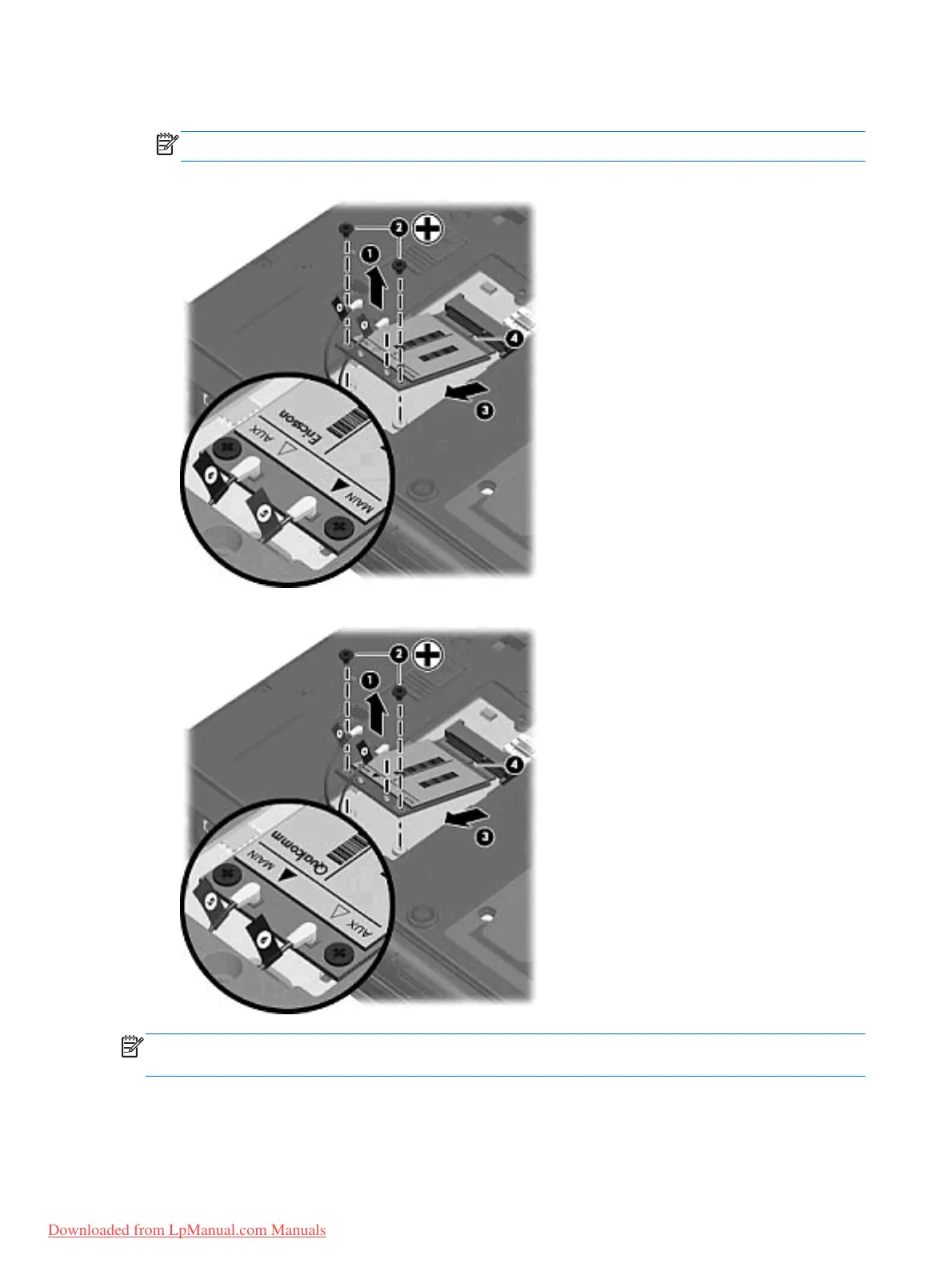

Figure 4-1 Ericsson module antenna locations
Figure 4-2 Qualcomm module antenna locations
NOTE: If the WWAN antennas are not connected to the terminals on the WWAN module, the
protective sleeves must be installed on the antenna connectors, as shown in the following illustration.
70 Chapter 4 Removal and replacement procedures
