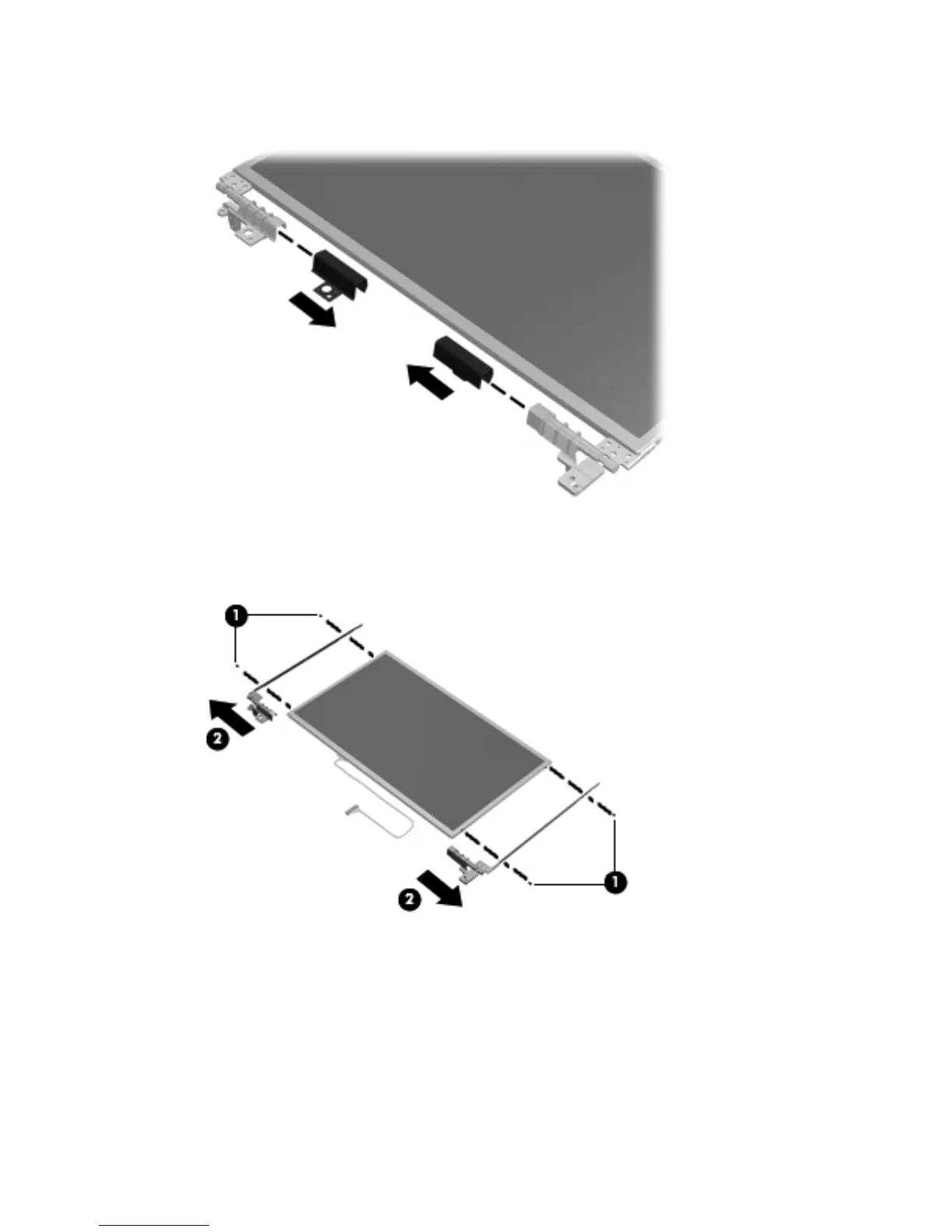

14. If you need to remove the hinge covers from the display hinges, pull the hinges toward one
another to remove them.
15. If it is necessary to replace the display hinges, remove the four Phillips PM2.5×3.0 screws (1)
that secure each display hinge to the display panel.
16. Remove the display hinges (2).
17. If you need to remove the WLAN antennas, remove the antenna cables from the clips (1) and
routing paths built into the display enclosure.
Component replacement procedures 87
