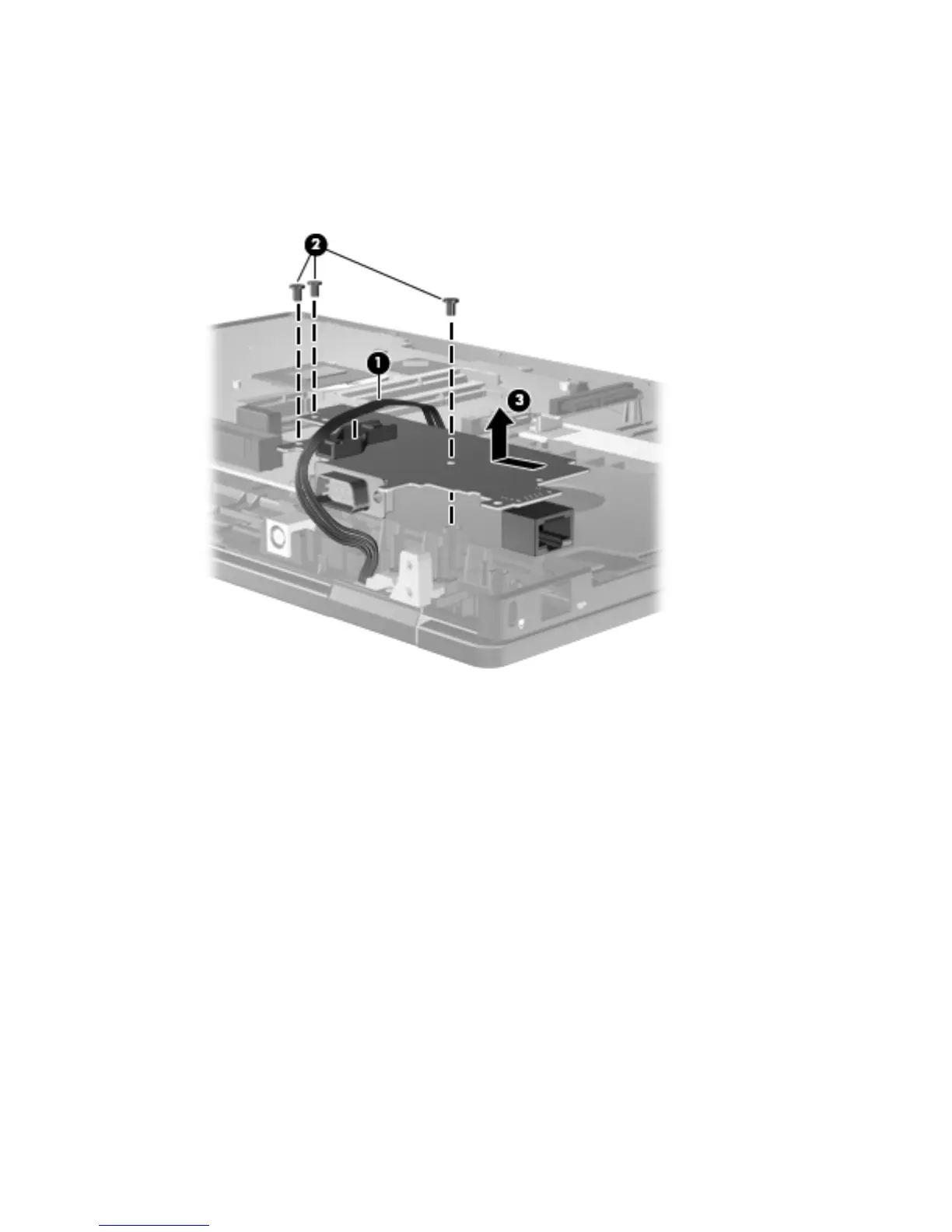

Remove the function board:
1. Remove the wireless antenna cables (1) from the retention clip attached to the system board.
2. Remove the three Phillips PM2.5×7.0 screws (2) that secure the function board to the computer.
3.
Slide the function board (3) to the left, and then remove the function board.
Reverse this procedure to install the function board.
Component replacement procedures
105
