HP ProBook 6570b Maintenance And Service Guide

NOTE: When replacing the system board, be sure that the following components are removed from
the defective system board and installed on the replacement system board:
●
Memory module (see
Memory module on page 90)
●
Heat sink (see
Heat sink on page 127)
●
Processor (see
Processor on page 130)
Remove the system board:
1. Turn the computer right-side up, with the front toward you.
2. Open the computer.
3.

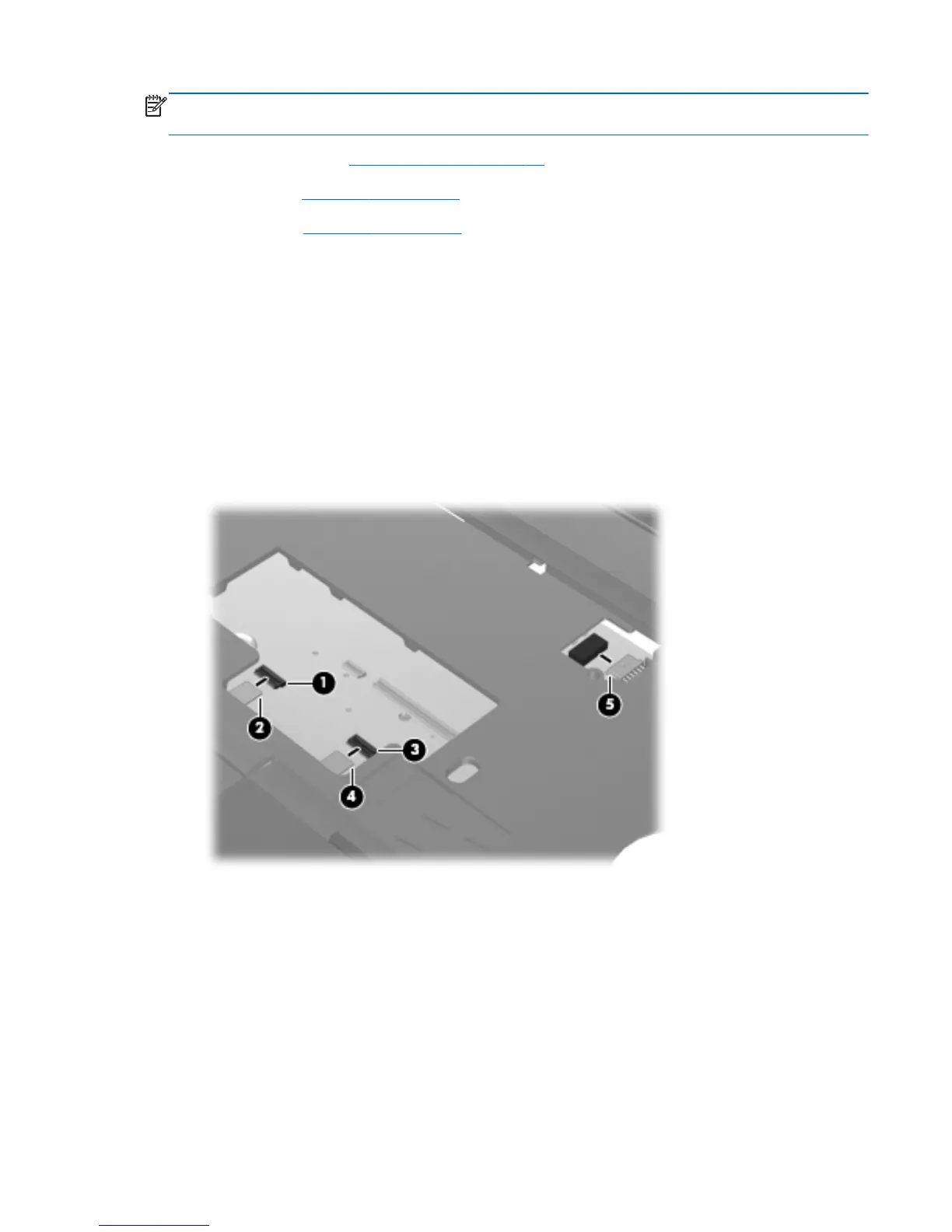

Release the ZIF connector (1) to which the Touchpad cable is connected, and then disconnect
the Touchpad cable (2) from the system board.
4. Release the ZIF connector (3) to which the fingerprint reader board cable is connected, and then
disconnect the fingerprint reader board cable (4) from the system board.
5. Disconnect the power connector cable (5) from the system board.
6. Close the computer.
7. Turn the computer upside down, with the battery bay toward you.
8.
Remove the Torx TM2.5×4.8 screw (1) that secures the ground loop (2) to the left display hinge.
9.
Release the display panel cable (3) from the routing channel (4) attached to the system board.
Component replacement procedures
125

HP ProBook 6570b Specifications

General

Bus type	DMI
Stepping	L1
Tjunction	90 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-3110M
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3100 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	24
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel HM76 Express
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
HDD speed	7200 RPM
HDD interface	SATA II
Storage media	HDD
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	320 GB
Compatible memory cards	MMC, SD
Number of HDDs installed	1
Display diagonal	15.6 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
LightScribe	-
Intel segment tagging	Enterprise
Ethernet interface type	Gigabit Ethernet
On-board graphics card ID	0x166
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 7 Professional
Form factor	Clamshell
Product color	Black
Country of origin	China
Battery capacity	55 Wh
Battery life (max)	7.25 h
Number of battery cells	6
AC adapter power	65 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	ENERGY STAR
Processor code	SR0N2
Processor ARK ID	65700
Processor package size	37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	251 mm
Width	374 mm
Height	34 mm
Weight	2510 g
