HP ProBook 6570b - Page 134

10.

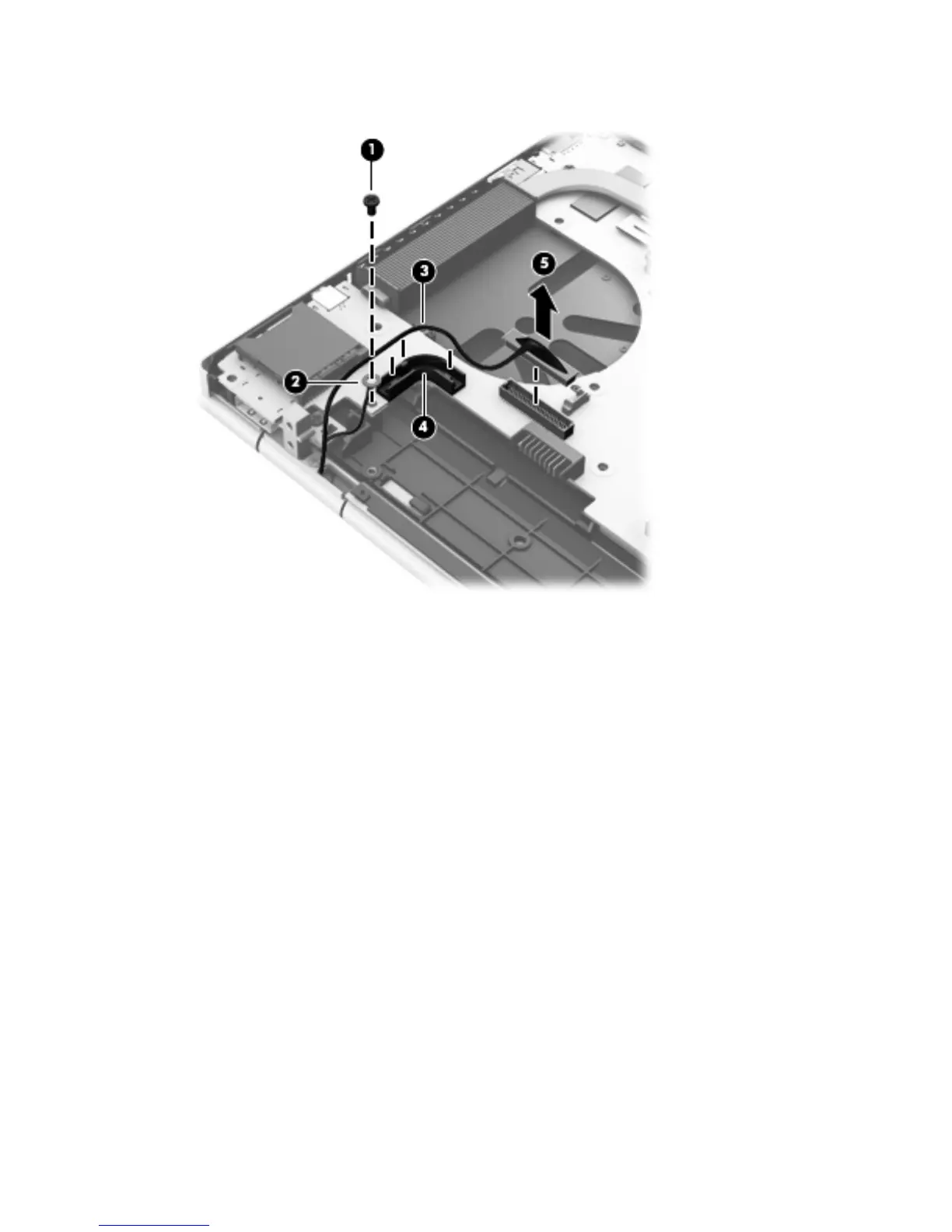

Disconnect the display panel cable (5) from the system board.
11. Remove the four Phillips PM2.5×5.0 screws (1) that secure the system board to the top cover.
12. Lift the right side of the system board (2) until it rests at an angle.
126 Chapter 4 Removal and replacement procedures
