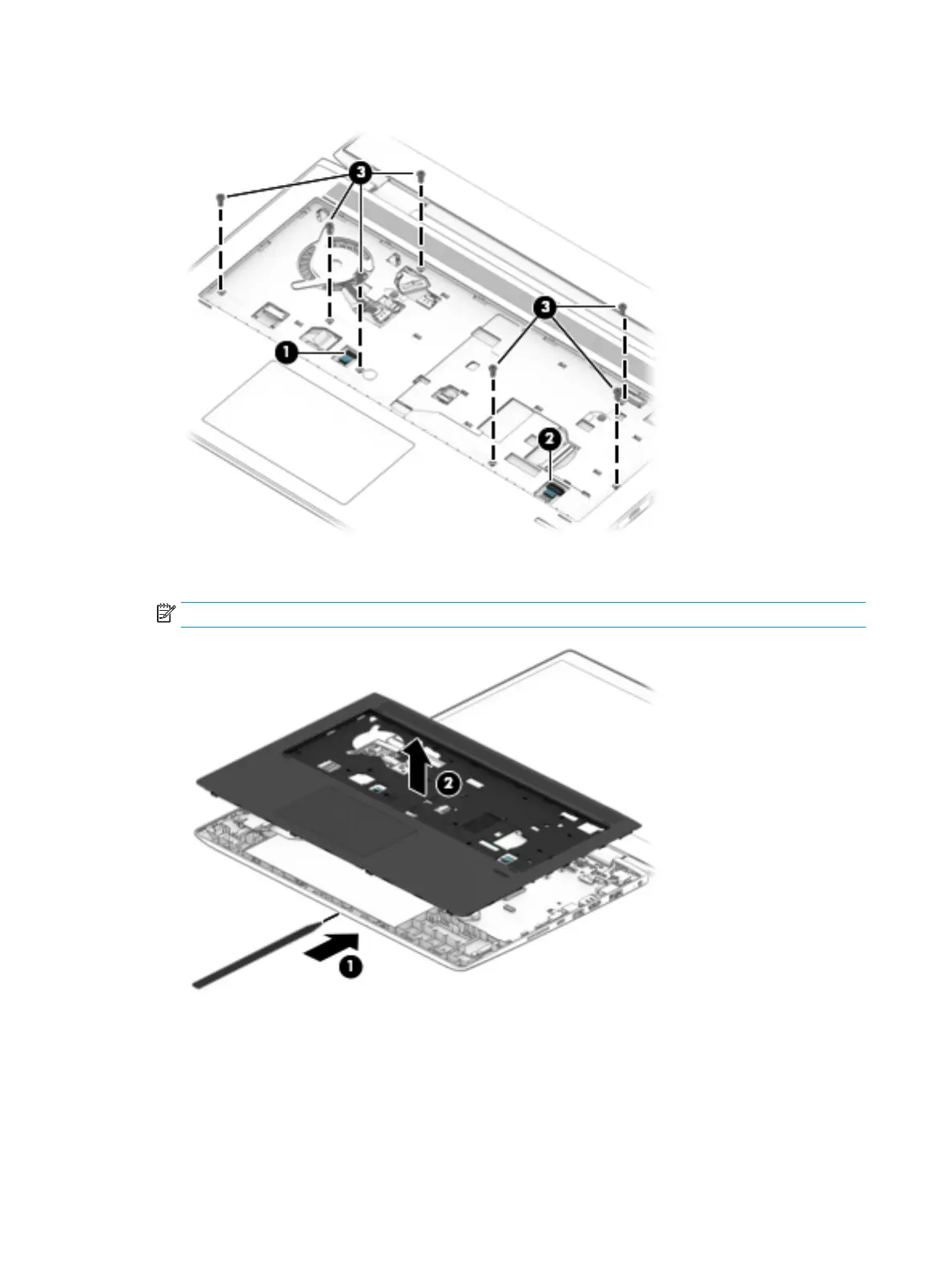

5. Remove the seven Torx T8 2.5×6.0 screws (3) that secure the top cover to the computer.
6. Use a tool to pry along the seam between the top cover and the computer chassis (1), and then remove
the top cover from the computer (2).
NOTE: The top cover may be secured very tightly to the computer.
Reverse this procedure to install the top cover.
48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
