Installing the Switch
Installation Procedures
2. Verify the Switch Passes Self Test
Before mounting the switch in its network location, you should first verify it
is working properly by plugging it into a power source and verifying it passes
its self test.
1. For the 1410-8G Switch and 1410-16G Switch, connect the AC/DC
adapter’s power cord to the power connector on the back of the switch,
and then plug the AC/DC power adapter into a nearby properly grounded
electrical outlet.
Note The 1410-8G Switch and 1410-16G Switch are shipped with one of two types
of AC/DC power adapter; either the universal AC/DC adapter with an AC
power cord, or the wall plug-in AC/DC adapter (without an AC power cord).

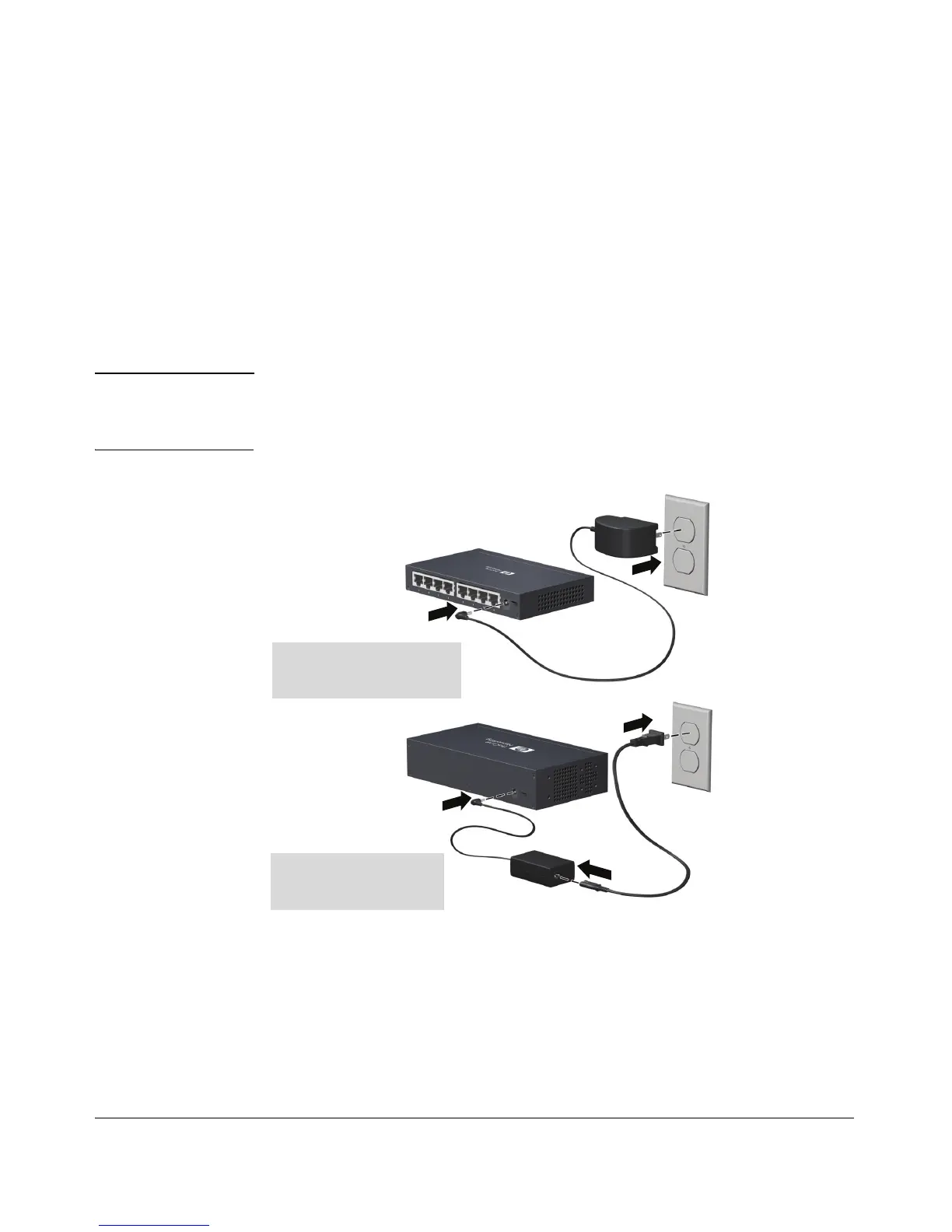

Figure 2-1. Connecting the 1410-8G Switch and 1410-16G Switch power adapters
For the 1410-24G Switch, connect the power cord supplied with the switch
to the power connector on the back of the switch, and then into a properly
grounded electrical outlet.
Connect the wall plug-in AC/DC
power adapter to the switch and
an AC power outlet
Connect the universal AC/DC
power adapter to the switch
and an AC power outlet
1410-8G Switch
1410-16G Switch
