9-8
Planning and Implementation for the 3500yl Switches
Planning Your PoE or PoE+ Configuration
Planning and
Implementation for the
3500yl Switches
The table in this example configuration contains entries that show the PoE+
power available for the 3500yl-24G-PoE+.

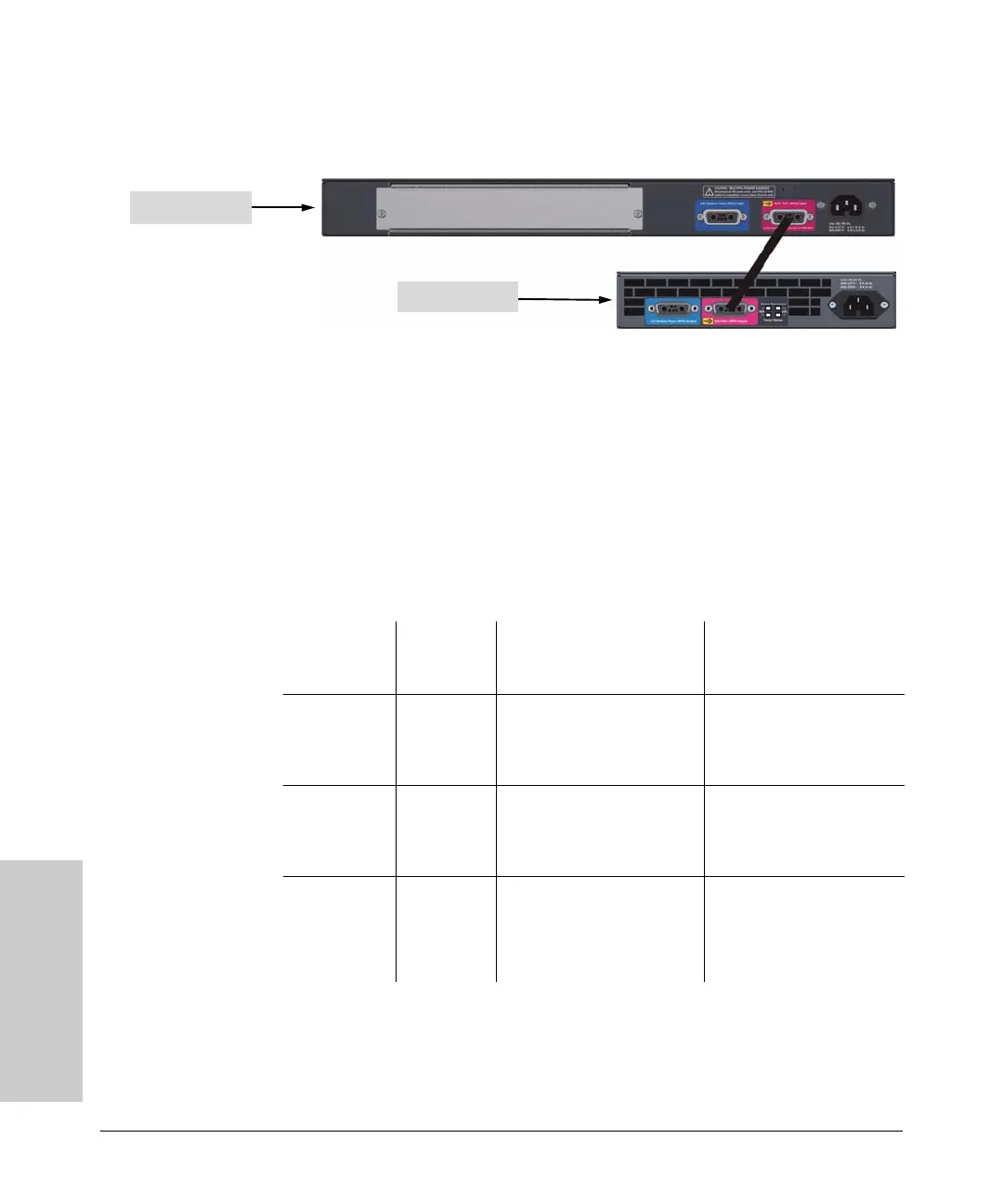

Figure 9-6. Example of a 3500yl-24G-PoE+ Switch connecting to a HP ProCurve
630 External and/or Redundant Power Supply (J9443A)
The same considerations apply for the mini-GBIC ports as in the previous
example.
One 3500yl-24G-PoE+ switch can be supported by one 630 RPS/EPS. This is a
full redundant configuration. The switch can be supplied with power should
either part of the internal power supply fail. The 630 RPS/EPS can supply
system power to keep the switch powered on and PoE+ power to supply the
attached PoE+ devices with power.
3500yl 24 port switch
630 RPS/EPS
Source of
Power
Watts
Available
# of Ports Powered and
Average watts/Port from
internal supply
Redundant # of Ports
Powered and Average
watts/Port
Internal PoE
Power Supply
398 13 @ average 30 W each for
a total of 360 W
24 @ average 15.4 W each for
a total of 369.6 W
None
Internal plus
External PoE+
Power Supply
398 + 382 24 @ average 30 W each
24 @ average 15.4 W each
and 48 @ 7.5 W each
13 @ average 30 W each for
a total of 360 W
24 @ average 15.4 W each
and 24 @ 7.5 W each
External PoE+
Power Supply
(failed Internal
PoE Power
Supply)
382 13 @ average 30 W each for
a total of 360 W
24 @ average 15.4 W each for
a total of 369.6 W
None
