HP ProCurve Switch xl PoE Module

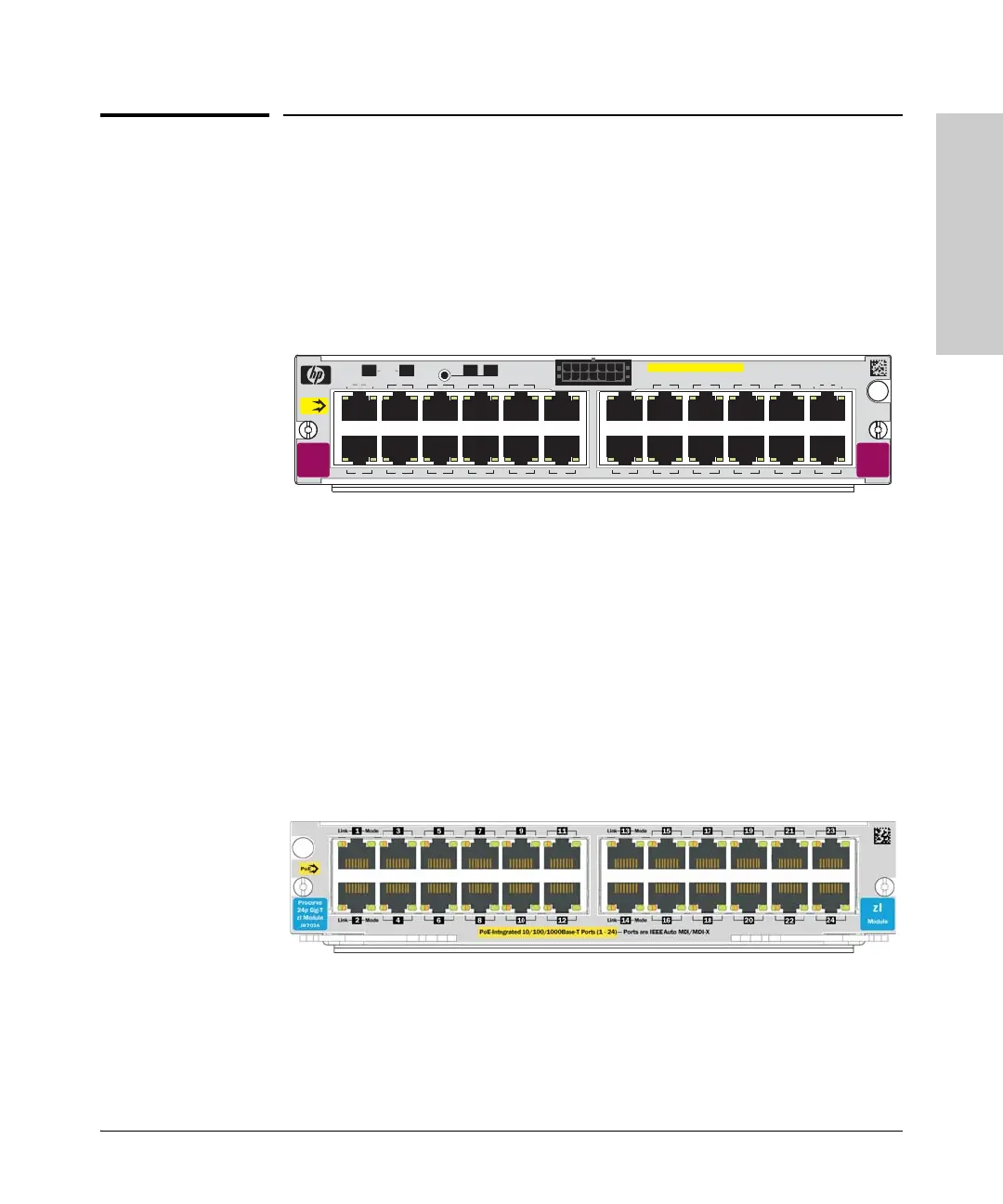

The HP ProCurve Switch xl PoE Module (J8161A) is a module for the HP
ProCurve 5300xl Switch and has 24 PoE-ready auto-sensing 10/100-TX RJ-45
ports.
All 24 ports are capable of supplying PoE power. However, for the module
ports to be able to supply PoE power it first must be connected to an EPS port
on a HP ProCurve 600 Redundant and External Power Supply (J8168A), or the
HP ProCurve 610 External Power Supply (J8169A), hereafter referred to as
the 600 RPS/EPS or the 610 EPS, respectively.
ProCurve Switch zl 24 port Gig-T PoE Module (J8702A)
The ProCurve Switch zl 24 port PoE Module (J8702A) is for the HP ProCurve
5400/8200zl switches and has 24 PoE auto-sensing 10/100/1000-TX RJ-45 ports.
All 24 ports are capable of supplying PoE power.
Std PoE
PoE
EPS
Status
LED Mode
Link
Mode
Link
Mode
1
2
3
4
5
6
13 14
15
16
17 18
23
2221
20
19
12
11
10
9
8
7
PoE-Ready 10/100-TX Ports (1-24)  all ports are HP Auto-MDIX
24
hp procurve
PoE
xl module
J8161A
xl
module
PoE
