Planning and Implementation for the 2600-PWR Switches
Planning the PoE Configuration
Planning and
Implementation for the 2600-
PWR Switches

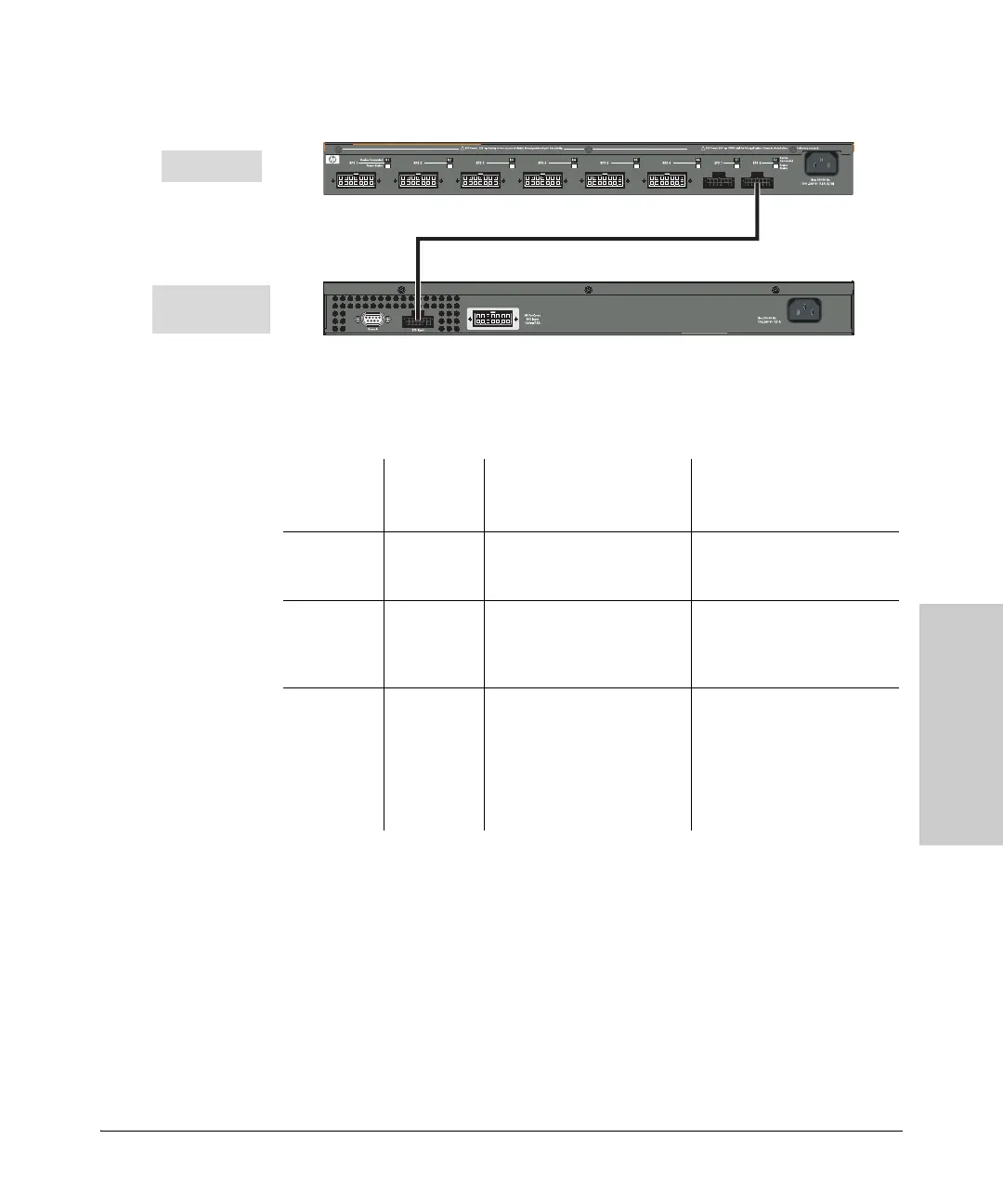

Figure 4-4. Example of an 600 RPS/EPS Power One Switch
The lowest loaded bank of ports (1-24 or 25-48) has 38 watts reserved. That
power is available for use by the two highest priority ports in the bank, (in a
default configuration ports 1 and 2, or 25 and 26).
600 RPS/EPS
ProCurve Switch
2650-PWR
Source of
Power
Watts
Available
# of Ports Powered and
Average watts/Port
Redundant # of Ports
Powered and Average watts/
Port
Internal PoE
Power
Supply
406 24 @ average 15.4 W each
48 @ average 7.5 W each
None
Internal plus
External PoE
Power
Supply
406 + 408
1 - 24 25 - 48
48 @ average 15.4 W each 24 @ average 15.4 W each
48 @ average 7.5 W each
External PoE
Power
Supply
(Failed
Internal PoE
Power
Supply)
408
(38 W is
reserved for
either ports
1-24 or 25-48)
24 @ average 15.4 W each
48 @ average 7.5 W each
None
