Planning and Implementation for the 2610-PWR Switches
Planning Your PoE Configuration
Planning and
Implementation for the 2610-
PWR Switches

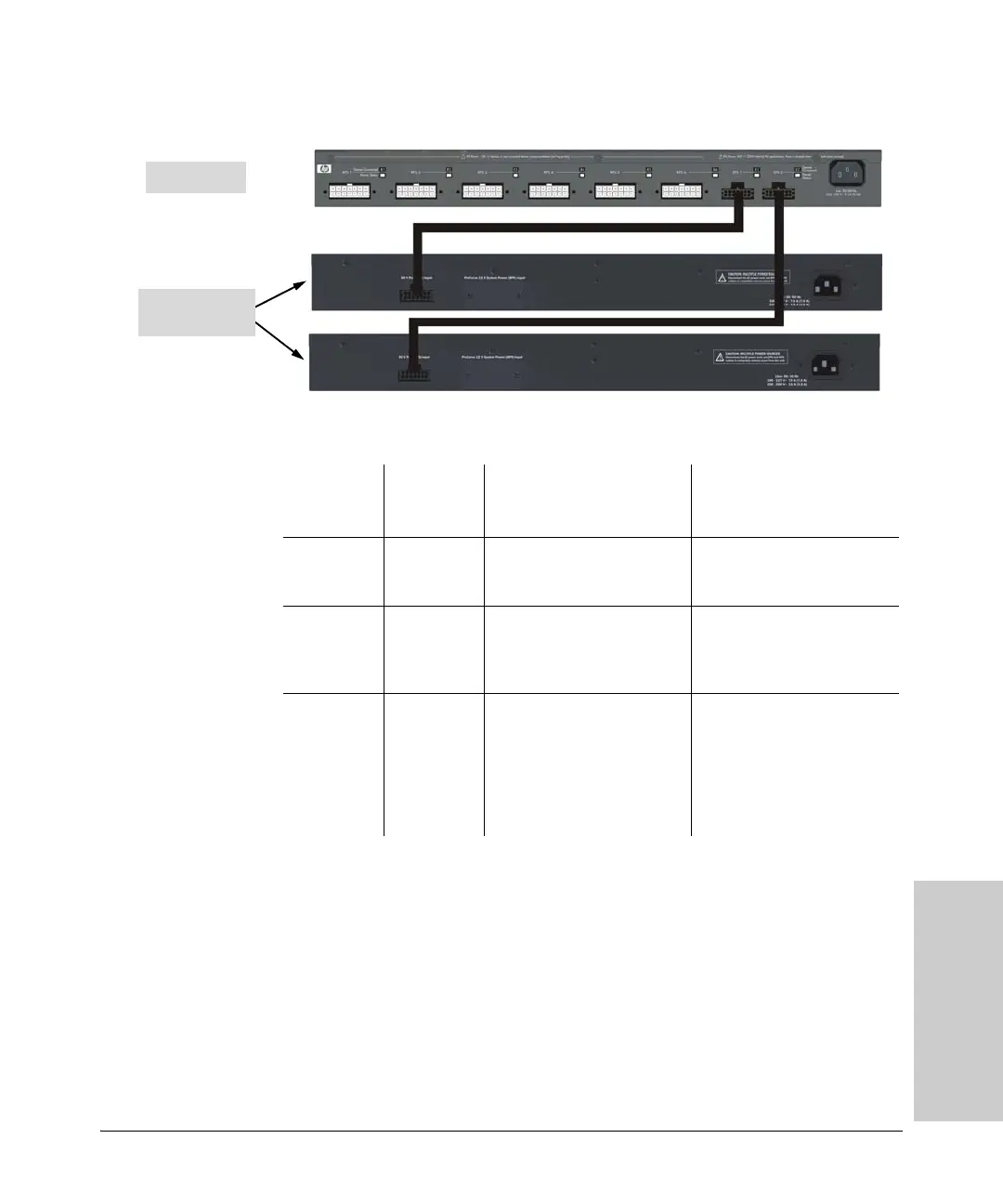

Figure 5-3. Example of an 600 RPS/EPS Powering Two 2610-24-PWR Switches
■ When two switches are connected to the 600 RPS/EPS ports, the PoE
power available to each switch is a maximum of 204 W. If all of your PDs
consume on average less than 7.5 W each (allowing for any line loss) then
all 24 ports will receive redundant power should a switch’s internal PoE
power supply fail.
Redundant power is available as long as the total power required remains
below 204 W.
600 RPS/EPS
ProCurve Switch
2610-24-PWR
Source of
Power
Watts
Available
# of Ports Powered and
Average watts/Port
Redundant # of Ports
Powered and Average watts/
Port
Internal PoE
Power
Supply
406 24 @ average 15.4 W each None
Internal plus
External PoE
Power
Supply
406 + 204
1 - 24
24 @ average 15.4 W each 24 @ 7.5 W each
12 @ 15.4 W each
External PoE
Power
Supply
(Failed
Internal PoE
Power
Supply)
204 24 @ 7.5 W each
12 @ 15.4 W each
None
