Planning and Implementation for the 2610-PWR Switches
Planning Your PoE Configuration
Planning and
Implementation for the 2610-
PWR Switches

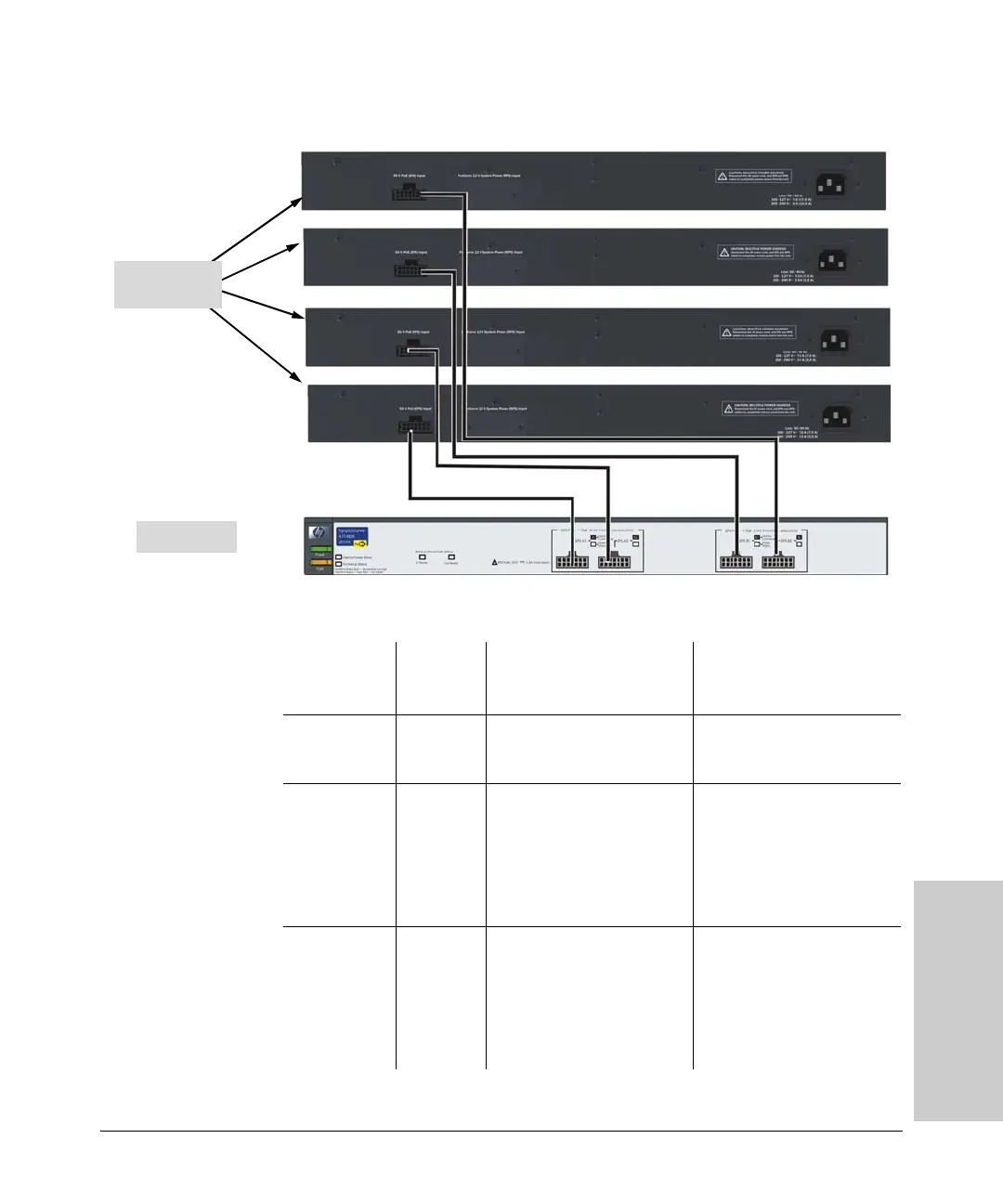

Figure 5-6. Example of an 610 EPS Powering Four 2610-48-PWR Switches
With all four EPS ports in use, each switch only receives 204 watts.
600 RPS/EPS
ProCurve Switch
2610-48-PWR
Source of
Power
Watts
Available
# of Ports Powered and
Average watts/Port
Redundant # of Ports
Powered and Average watts/
Port
Internal PoE
Power Supply
406 24 @ average 15.4 W each
48 @ average 7.5 W each
None
Internal plus
External PoE
Power Supply
406 + 204
1 - 24 25 - 48
24 @ average 15.4 W each
and 24 @ 7.5 W each
or
36 @ average 15.4 W each
10 (bank 1) and 2 (bank 2) @
average 15.4 W each
19 (bank 1) and 4 (bank 2) @
average 7.5 W each
48 @ average 4.2 W each
External PoE
Power Supply
(Failed Internal
PoE Power
Supply)
204
(22 W is
reserved
for either 1-
24 or 25-48)
10 (bank 1) and 2 (bank 2) @
average 15.4 W each
19 (bank 1) and 4 (bank 2) @
average 7.5 W each
48 @ average 4.2 W each
None
