4-14

Switch Meshing

Configuring Switch Meshing

Example. For the topology with a four-switch mesh shown in Figure 4-11, a

show mesh command issued on the North switch would produce the following

output:

North# show mesh

Adjacent Hosts

Port State | Hostname Address Peer Port Mesh Warning

------ --------------- + -------- ------------- ------------- ------------

13 Established | East 001560-f9e300 001560-f9f3f3 No

14 Established | South 001f28-244a00 001f28-245ac3 No

15 Established | West 001279-884300 001279-8853f3 No

See the log file for details of warnings.

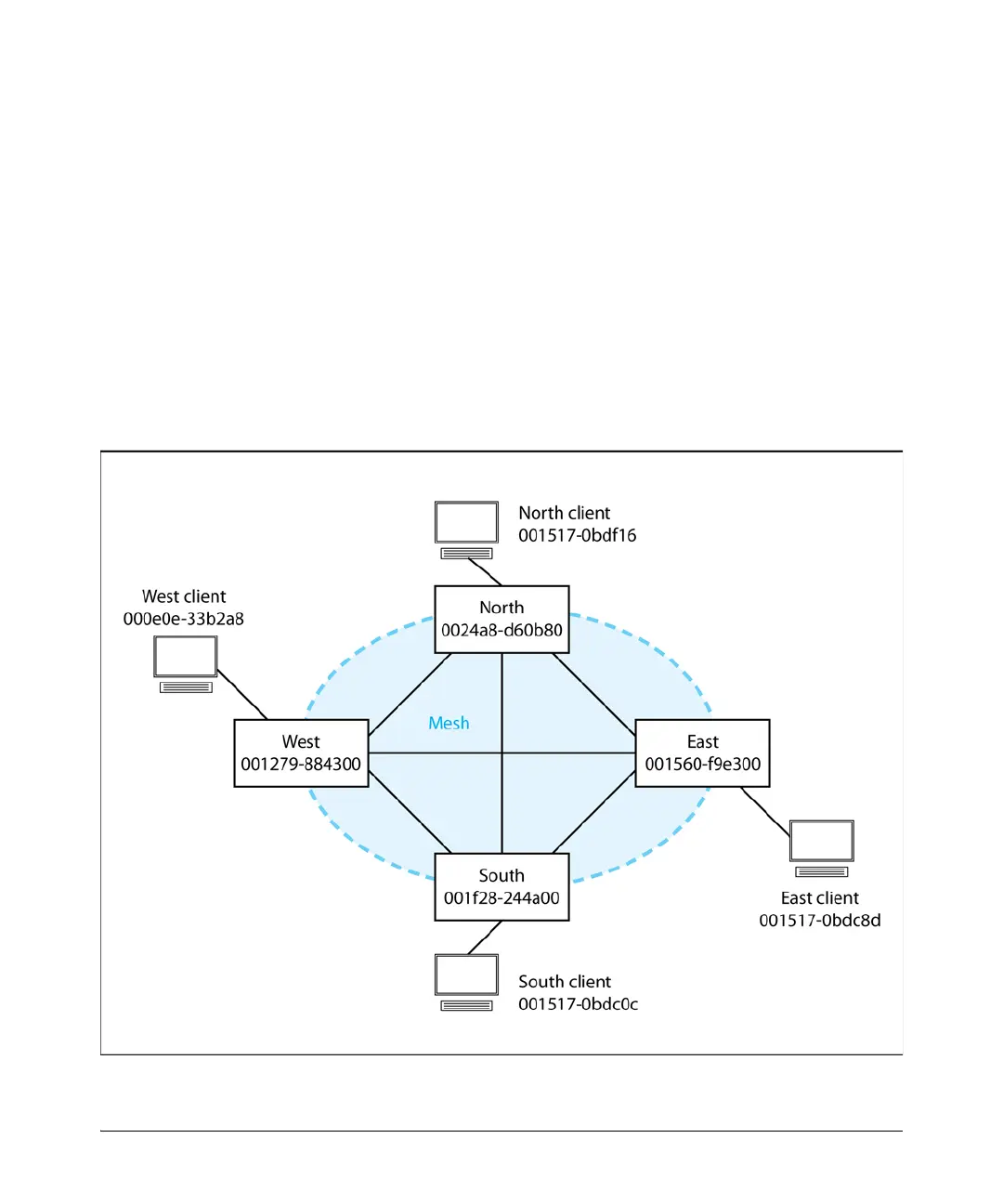

Figure 4-11. Mesh Topology Example
