HP ProCurve 6200yl Series Advanced Traffic Management Guide

4-14
Switch Meshing
Configuring Switch Meshing
Example. For the topology with a four-switch mesh shown in Figure 4-11, a
show mesh command issued on the North switch would produce the following
output:
North# show mesh
Adjacent Hosts
Port State | Hostname Address Peer Port Mesh Warning
------ --------------- + -------- ------------- ------------- ------------
13 Established | East 001560-f9e300 001560-f9f3f3 No
14 Established | South 001f28-244a00 001f28-245ac3 No
15 Established | West 001279-884300 001279-8853f3 No
See the log file for details of warnings.

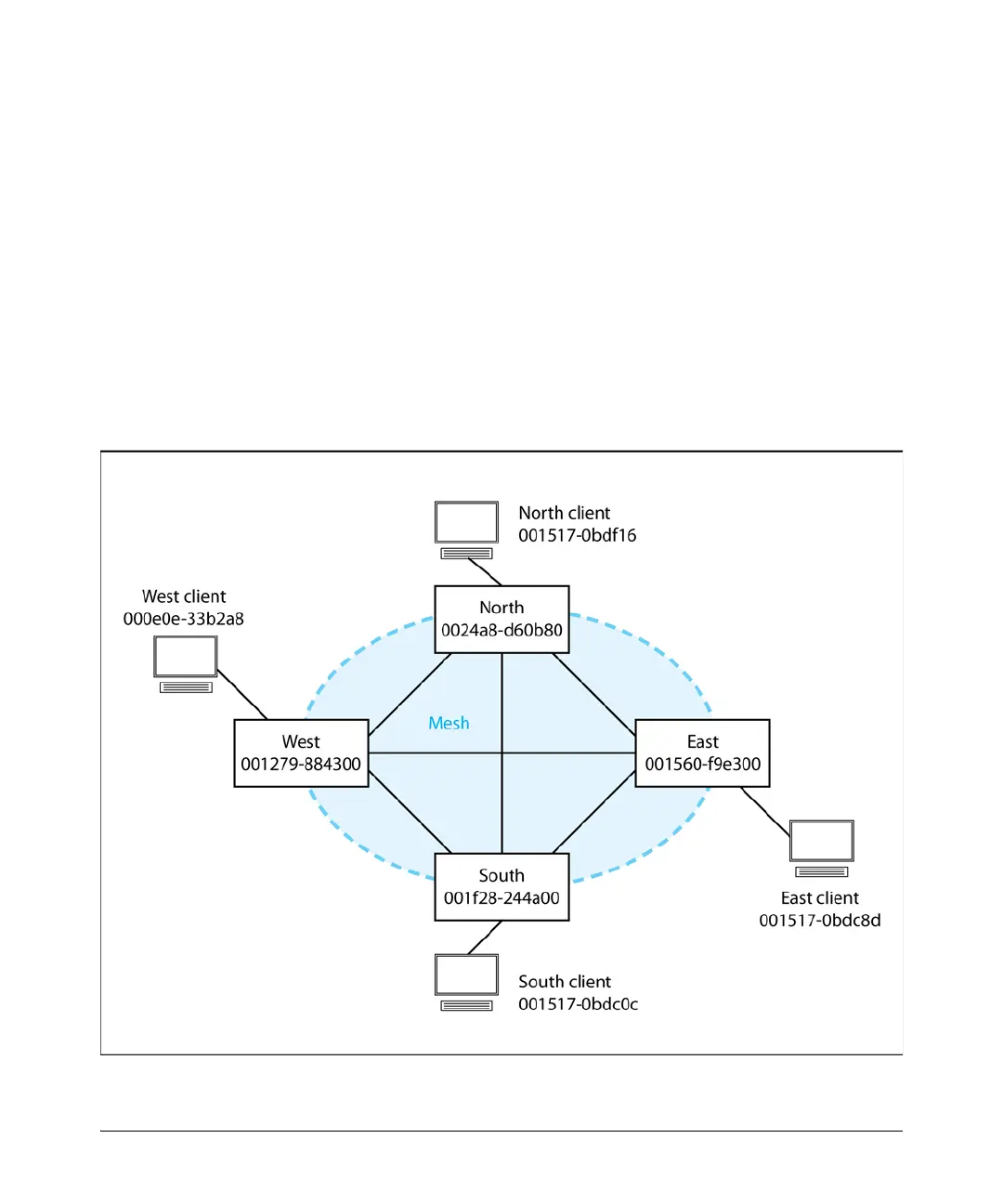

Figure 4-11. Mesh Topology Example
