HP ProDesk 490 G3 MT Hardware Reference Guide

on the rear panel that covers the expansion slot. Be sure to remove the appropriate shield for the
expansion card you are installing.

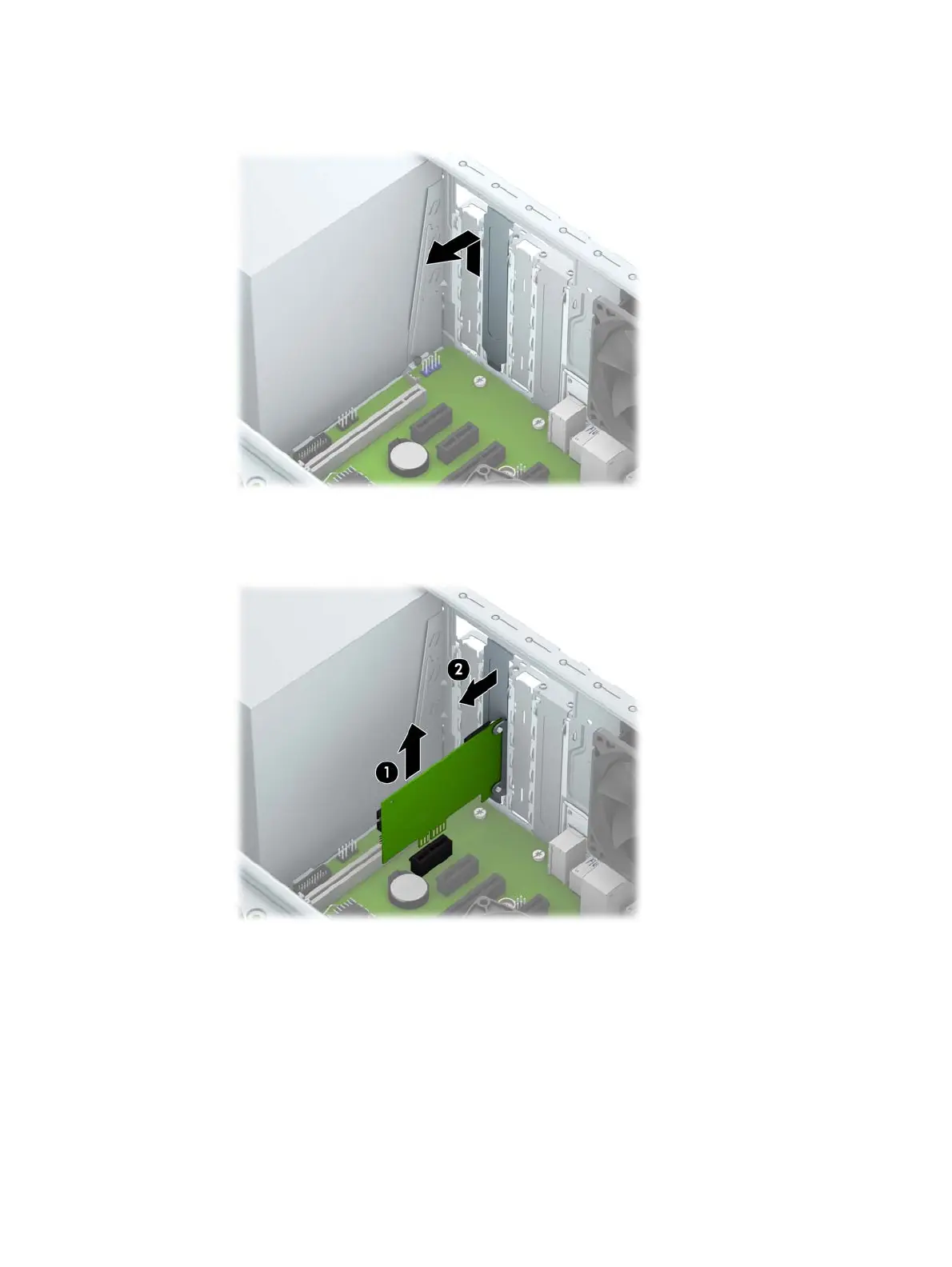

b. If you are removing a PCI Express x1 card, hold the card at each end and carefully rock it back and
forth until the connectors pull free from the socket. Lift the card straight up (1) then away from
the inside of the chassis (2) to remove it. Be sure not to scrape the card against other components.
Removing or installing an expansion card 15

HP ProDesk 490 G3 MT Specifications

General

Operating System	Windows 10 Pro
Form Factor	Microtower
Memory Slots	2 DIMM
Memory Type	DDR4-2133
Maximum Memory	32 GB
Weight	7.05 kg
Processor	Intel Core i5, i3
RAM	Up to 32GB DDR4
Storage	500 GB HDD
Graphics	Intel HD Graphics 530
Chipset	Intel H110 Chipset
Internal Drive Bays	1 x 3.5"
External Drive Bays	1 x 5.25"
Expansion Slots	1 PCIe x16
Ports (Front)	2 USB 3.0
Ports (Rear)	1 VGA
Audio	Realtek ALC221
Optical Drive	DVD-Writer
