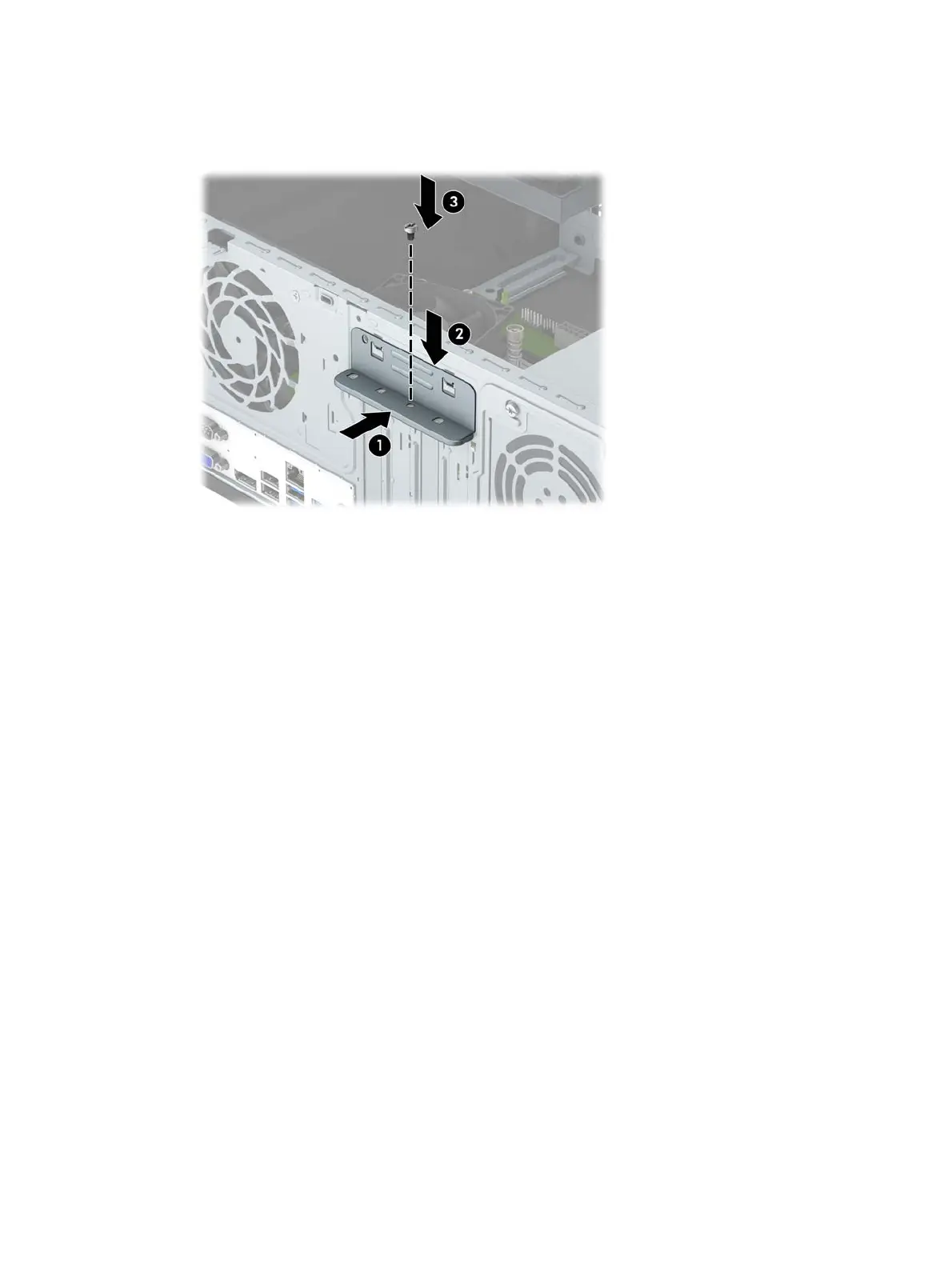

12. Press the expansion card retention latch against the back of the chassis (1) and slide it down (2) so that

the tabs on the back of the latch slide into the notches on the chassis and then replace the screw that

secures the latch (3).

13. Connect external cables to the installed card, if needed. Connect internal cables to the system board, if

needed.

14. Replace the computer access panel.

15. Reconnect the power cord and any external devices, and then turn on the computer.

16. Lock any security devices that were disengaged when the computer access panel was removed.

17. Reconfigure the computer, if necessary.

Removing or installing an expansion card 17
