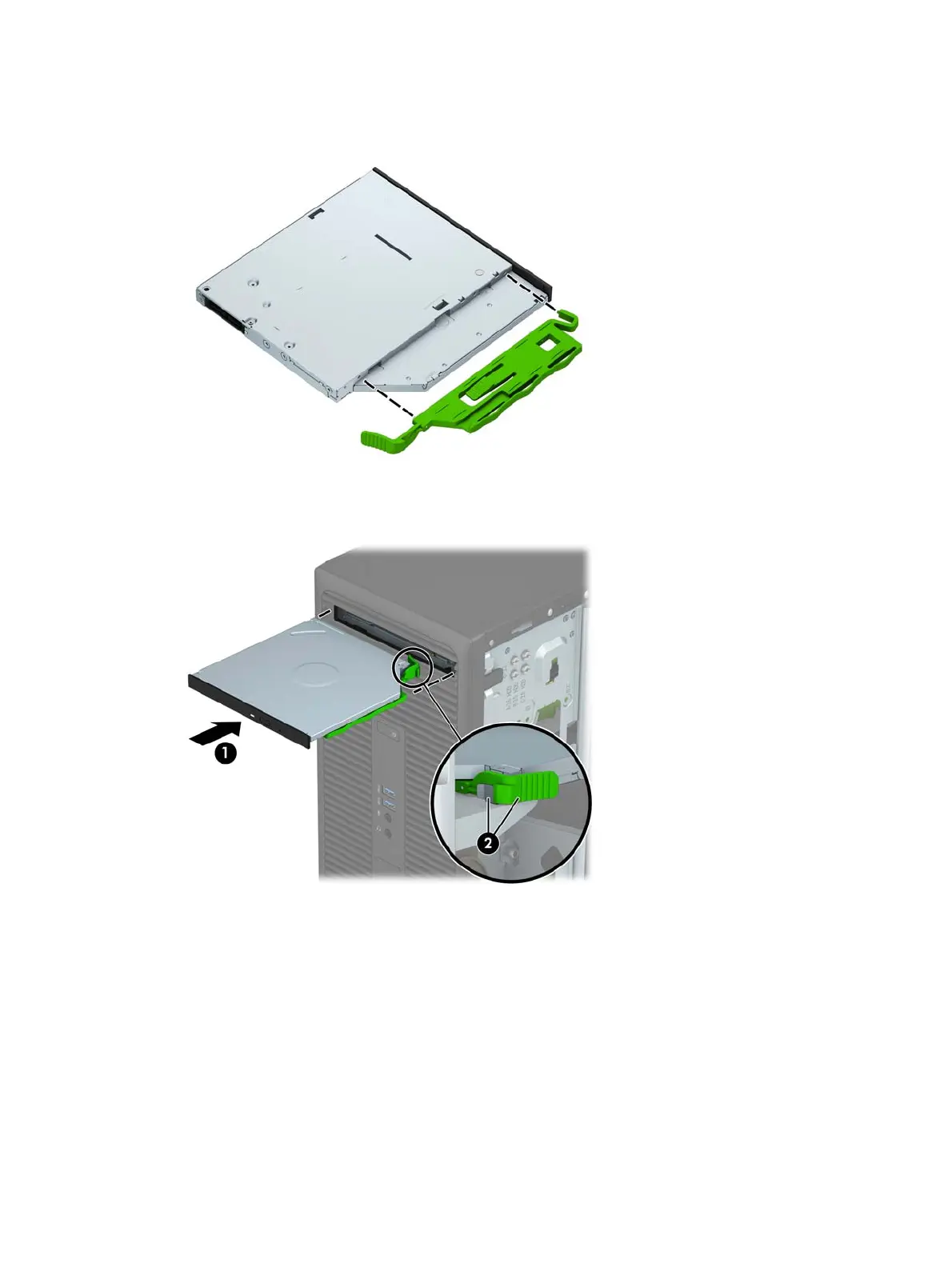

8. Align the small pin on the release latch with the small hole on the side of the drive and press the latch
firmly onto the drive.
9. Slide the optical drive through the front bezel (1) all the way into the bay so that the green latch locks
onto the chassis frame (2).
