Removing a slim optical drive bezel blank

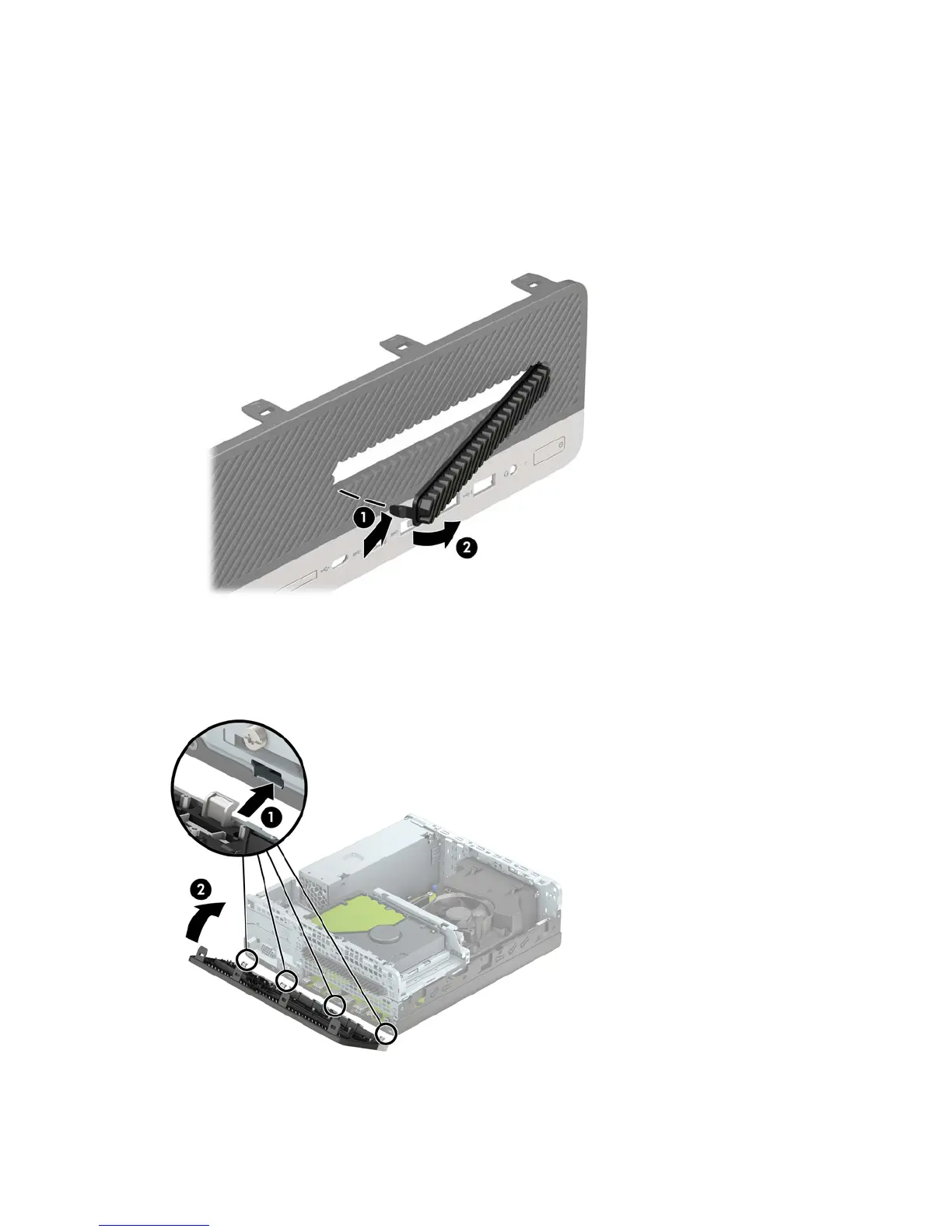

On some models, a bezel blank covers the slim optical drive bay. Remove the bezel blank before installing an
optical drive. To remove the bezel blank:
1. Remove the computer access panel and front bezel.
2. Then press inward on the tab on the left side of the blank (1), and then rotate the blank o the front
bezel (2).
Replacing the front bezel
Insert the four hooks on the bottom of the bezel into the rectangular holes on the chassis (1), and then rotate
the top of the bezel onto the chassis (2) and snap it in place.
Removing a slim optical drive bezel blank 9
