HP ProDesk 600 G5 PCI MT User Manual

PSG instructions for this template are available at EL-MF877-01

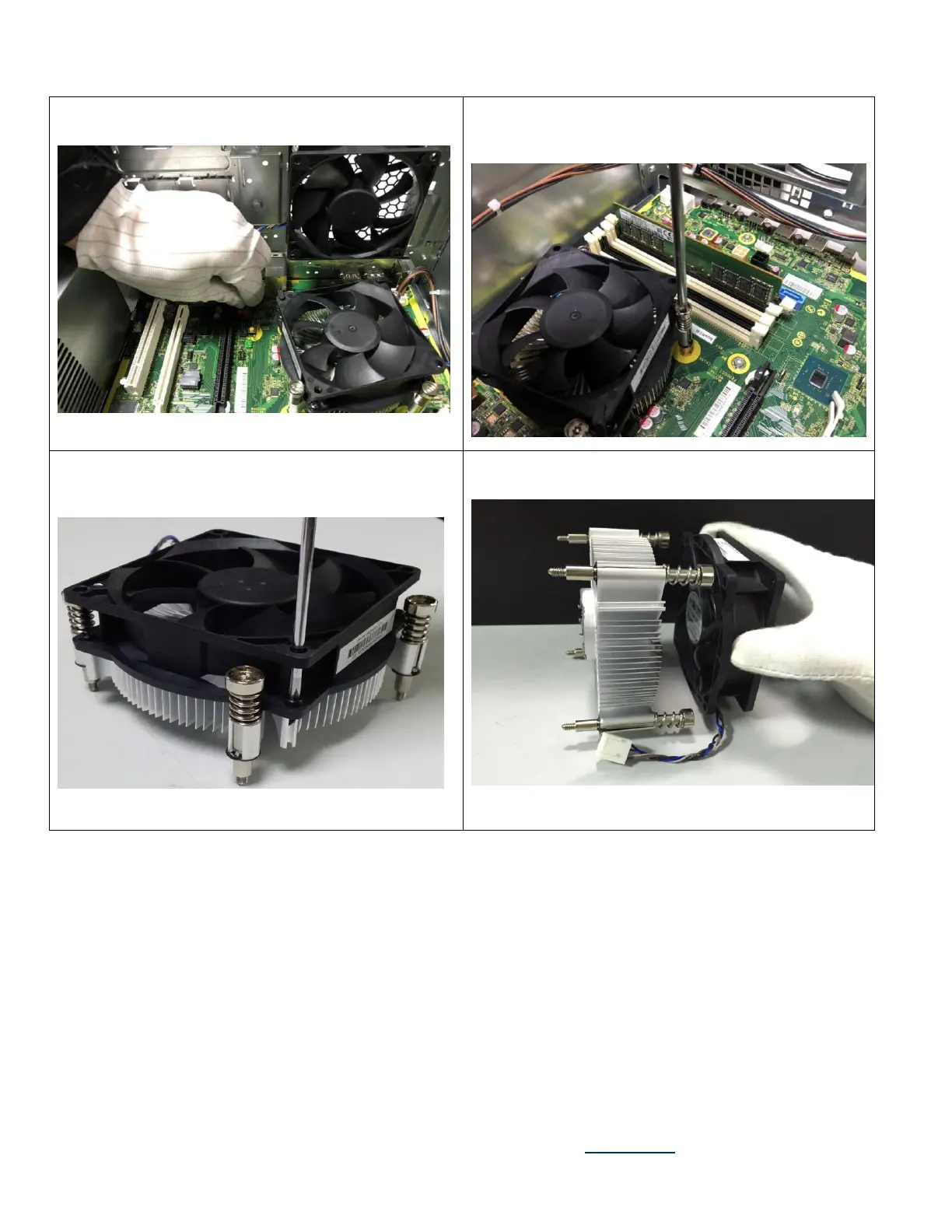

Figure 19 Disconnect system fan cable from the MB
Figure 20 Use T-15 screwdriver to loose the screws and
remove heat sink
Figure 21 Use PH1 screwdriver to loose the screws and
remove the fan
Figure 22 Separate the fan from CPU heat sink
EL-MF877-00 Page 7
Template Revision B

HP ProDesk 600 G5 PCI MT Specifications

General

Brand	HP
Model	ProDesk 600 G5 PCI MT
Category	Desktop
Language	English
