HP ProDesk 600 G5 PCI MT - Page 8

PSG instructions for this template are available at EL-MF877-01

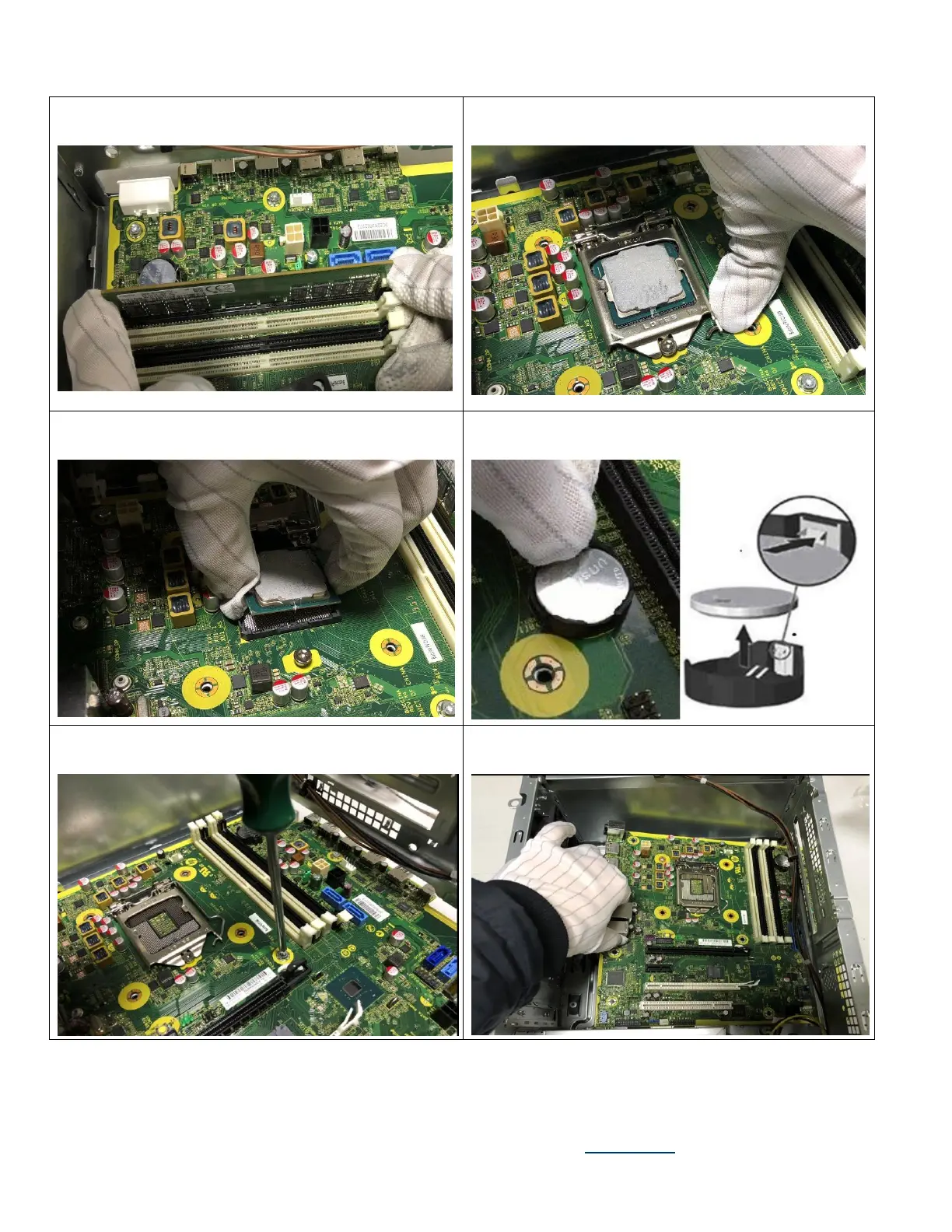

Figure 23 Disconnect memory from the MB
Figure 24 Rotate the handle and open it up
Figure 25 Remove CPU from MB
Figure 26 Remove the battery from the MB
Figure 27 Use T-15 to loose the screws of MB
Figure 28 Remove MB from chassis
EL-MF877-00 Page 8
Template Revision B
