HP ProDesk 600 G5

To Next Page

To Previous Page

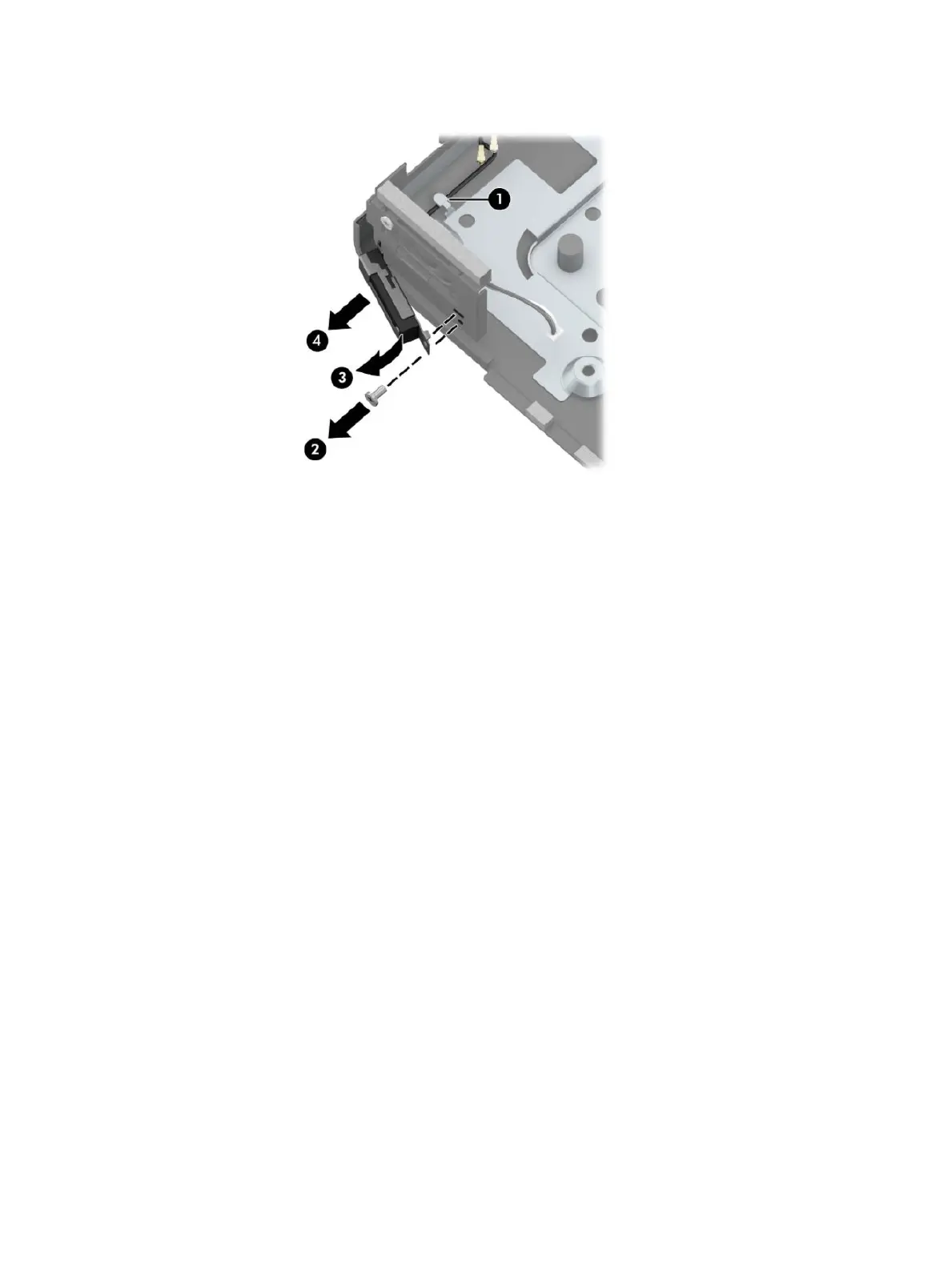

15. Rotate and remove the antenna (3), and then pull the cable out of the front of the chassis (4).

Reverse the removal procedure to install the WLAN antennas and cables.

Internal WLAN antenna cables 39
