Removal and replacement procedures 32
To replace the component:

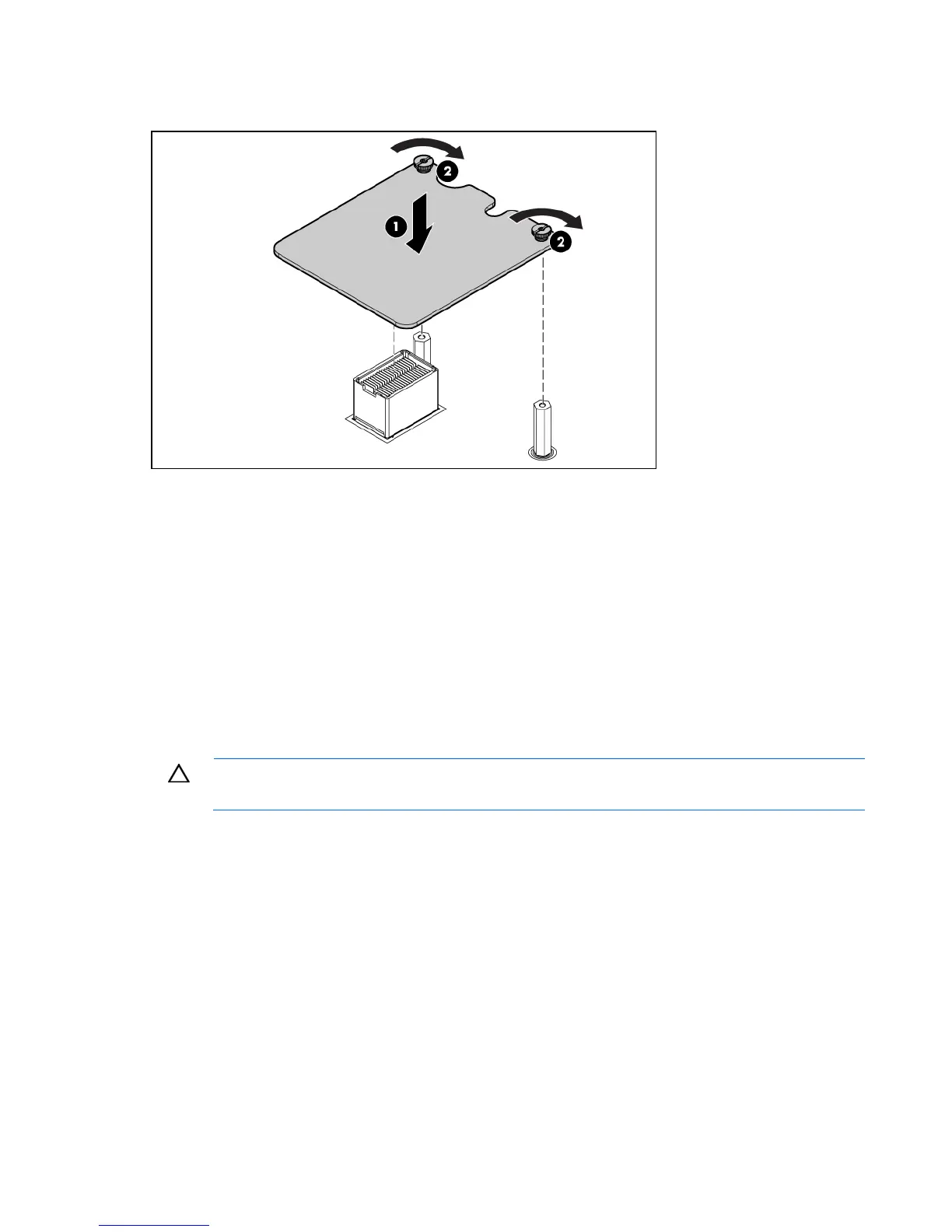

1. Install the mezzanine card. Press down on the connector to seat the board.
2. Install the access panel ("Access panel" on page 25).
3. Install the server blade.
Hard drive backplane
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 24).
3. Remove the access panel ("Access panel" on page 25).
4. Remove all hard drives ("Hard drive" on page 26).
5. Remove all hard drive blanks ("Hard drive blank" on page 26).
CAUTION: Remove all hard drives and hard drive blanks before removing the hard drive
backplane.
