Removal and replacement procedures 35
5.
Remove all hard drive blanks ("Hard drive blank" on page 26).
6. Remove the hard drive backplane ("Hard drive backplane" on page 32).
7. Remove the front panel/hard drive cage assembly ("Front panel/hard drive cage assembly" on
page 33).
8. Remove the cache module.

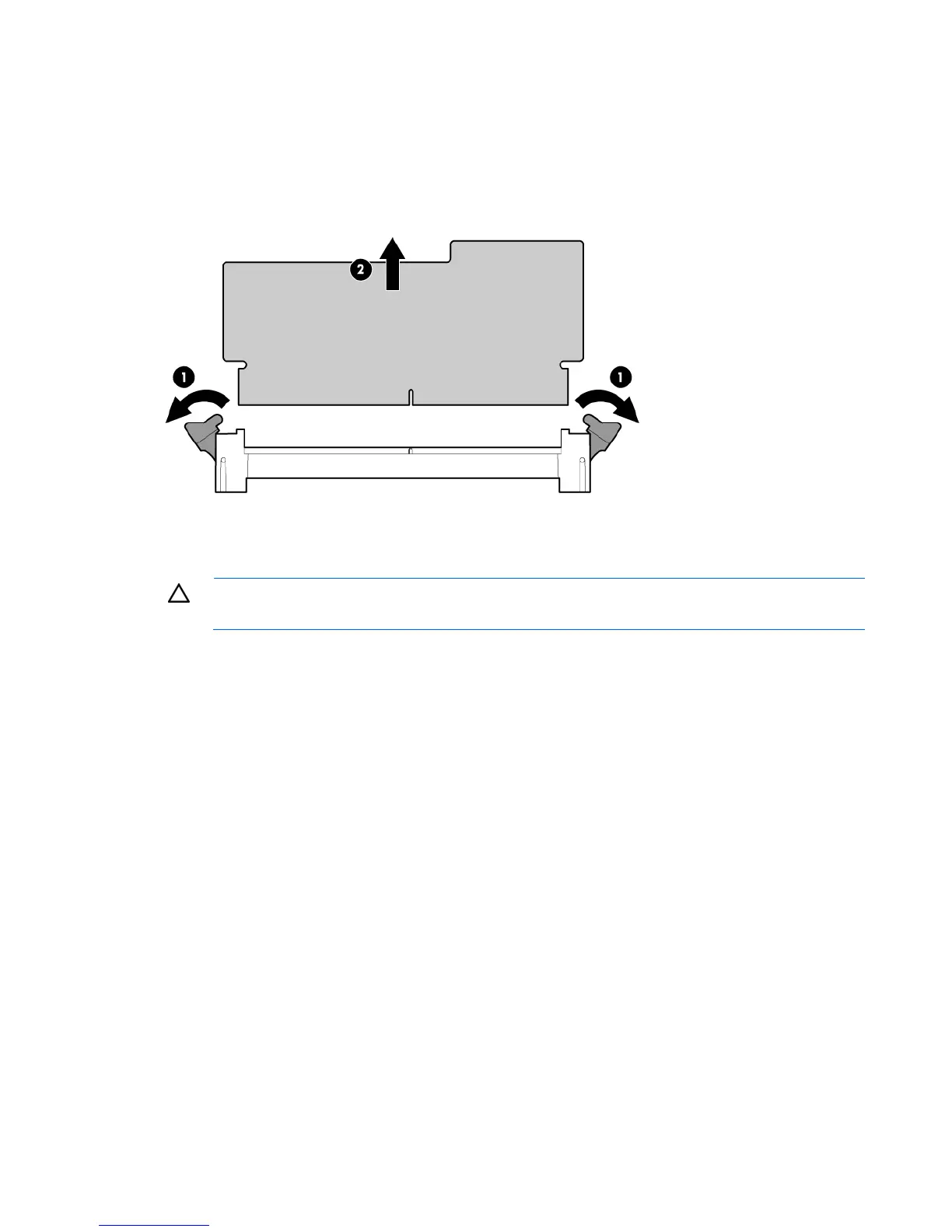

To replace the component, reverse the removal procedure.
CAUTION: To prevent damage to the cache module during installation, be sure the cache
module is fully inserted before pressing down.
Removing the battery pack
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 24).
3. Remove the access panel ("Access panel" on page 25).
