Connectors, switches, and LEDs 115
Connectors, switches, and LEDs
Connectors and components

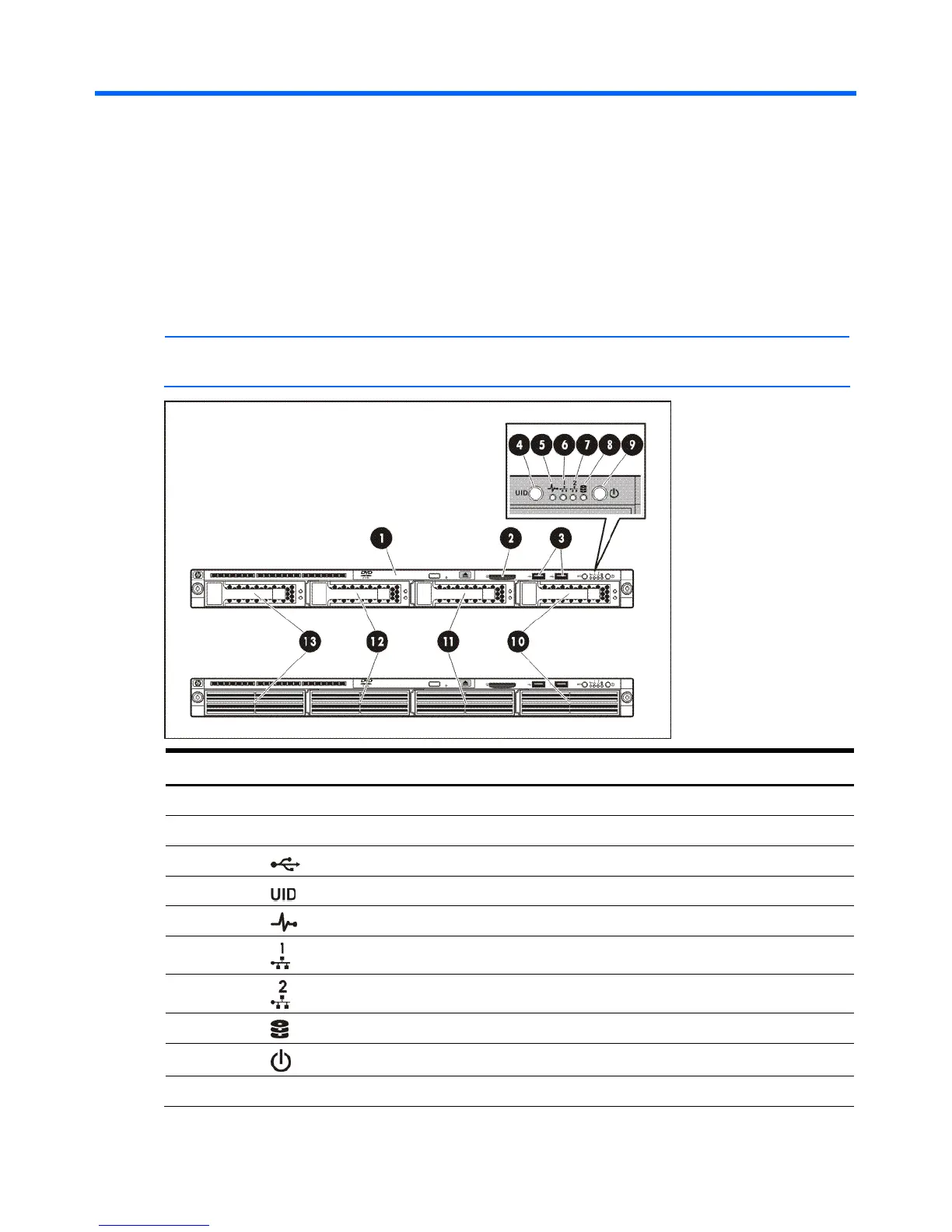

Front panel
NOTE: In the below figure, the top section shows a system with hot plug hard drives, the bottom part
shows a non hot plug model.
Item Icon Component
1 Optical disc drive (ODD)
2 Serial label pull tab
3
USB ports
4
Unit identification (UID) button/LED
5
Internal health LED
6
Embedded NIC 1 activity/link LED
7
Embedded NIC 1 activity/link LED
8
Hard disk drive (HDD) activity LED
9
Power/standby button/LED
10 Hard disk drive 4
