HP PROLIANT DL320 G6 - Non-Hot-Plug Power Supply Bracket

Removal and replacement procedures 33
To remove the component:
1. Power down the server (on page 25).
2. Remove the 460-W pluggable AC power supply ("460-W pluggable AC power supply" on page
31).
3. Remove the server from the rack (on page 26).
4. Remove the access panel ("Access panel" on page 28).
5. Remove the air baffle ("Air baffle" on page 28).
6. Remove the power supply cage.
7. Remove the power supply backplane.
To replace the component, reverse the removal procedure.

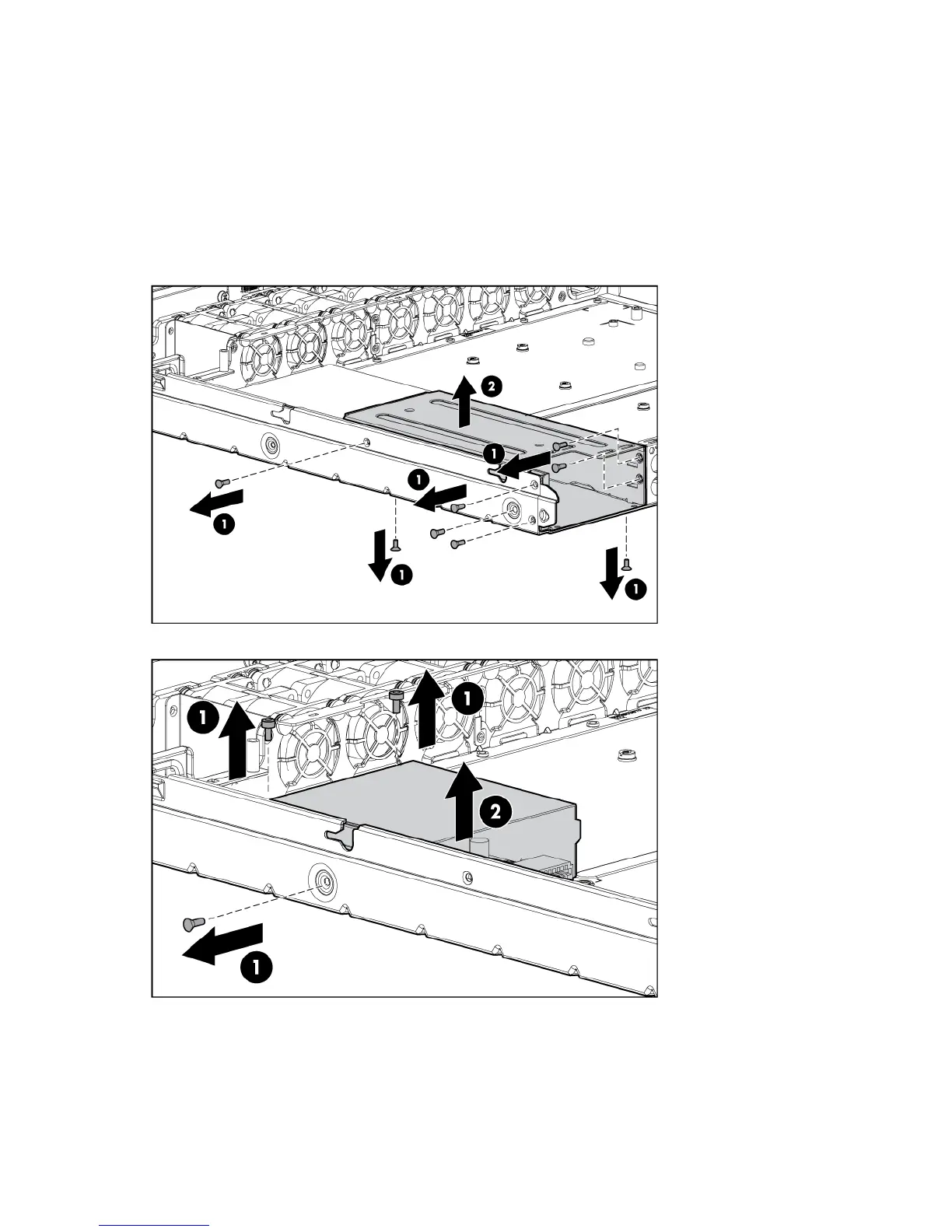

Non-hot-plug power supply bracket
