Removal and replacement procedures 44
7.

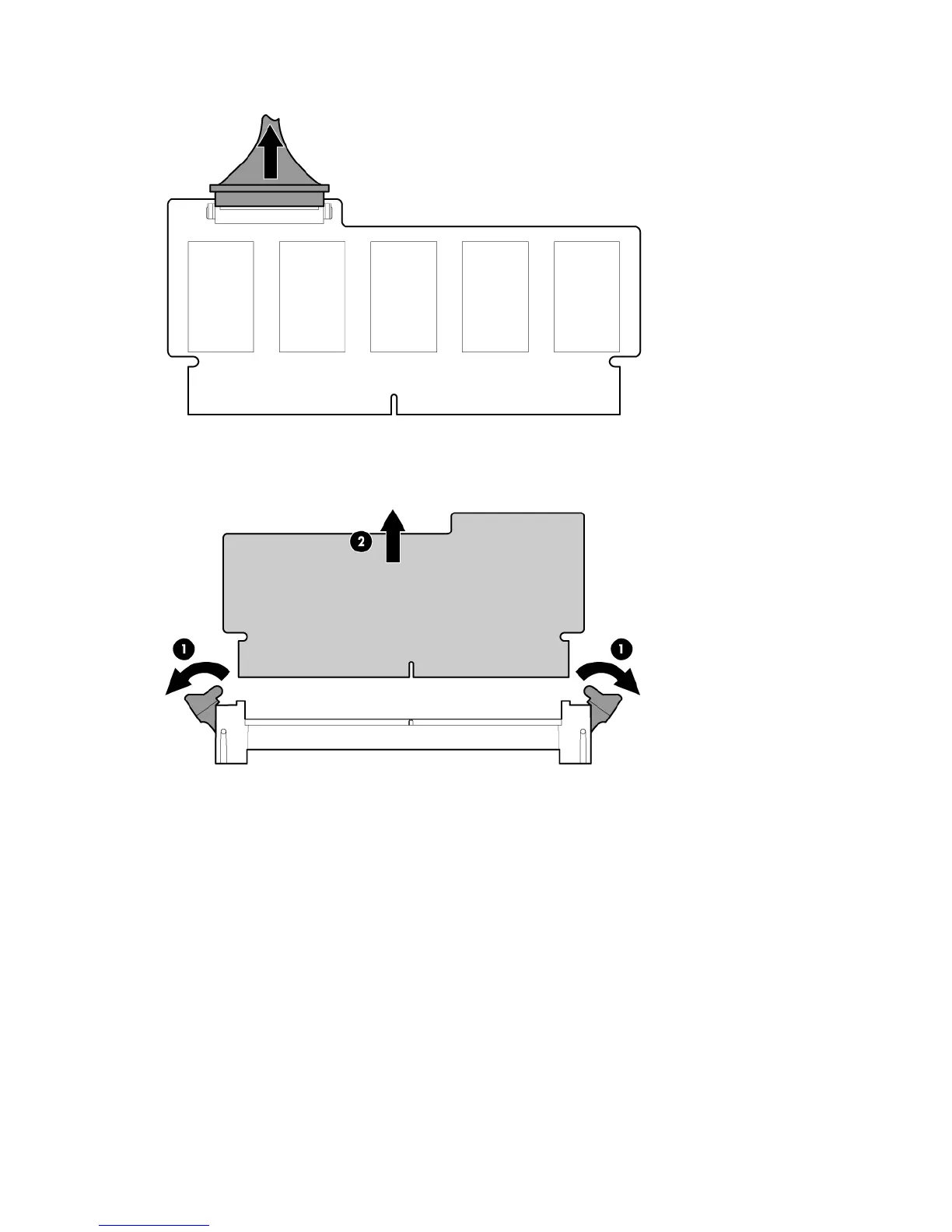

Disconnect the battery pack from the controller.
8. Remove the cache module.
To replace the component, reverse the removal procedure.
Cache battery
To remove the component:
1. Power down the server (on page 25).
2. Remove the server from the rack (on page 26).
3. Remove the access panel ("Access panel" on page 28).
4. Remove the air baffle ("Air baffle" on page 28).
