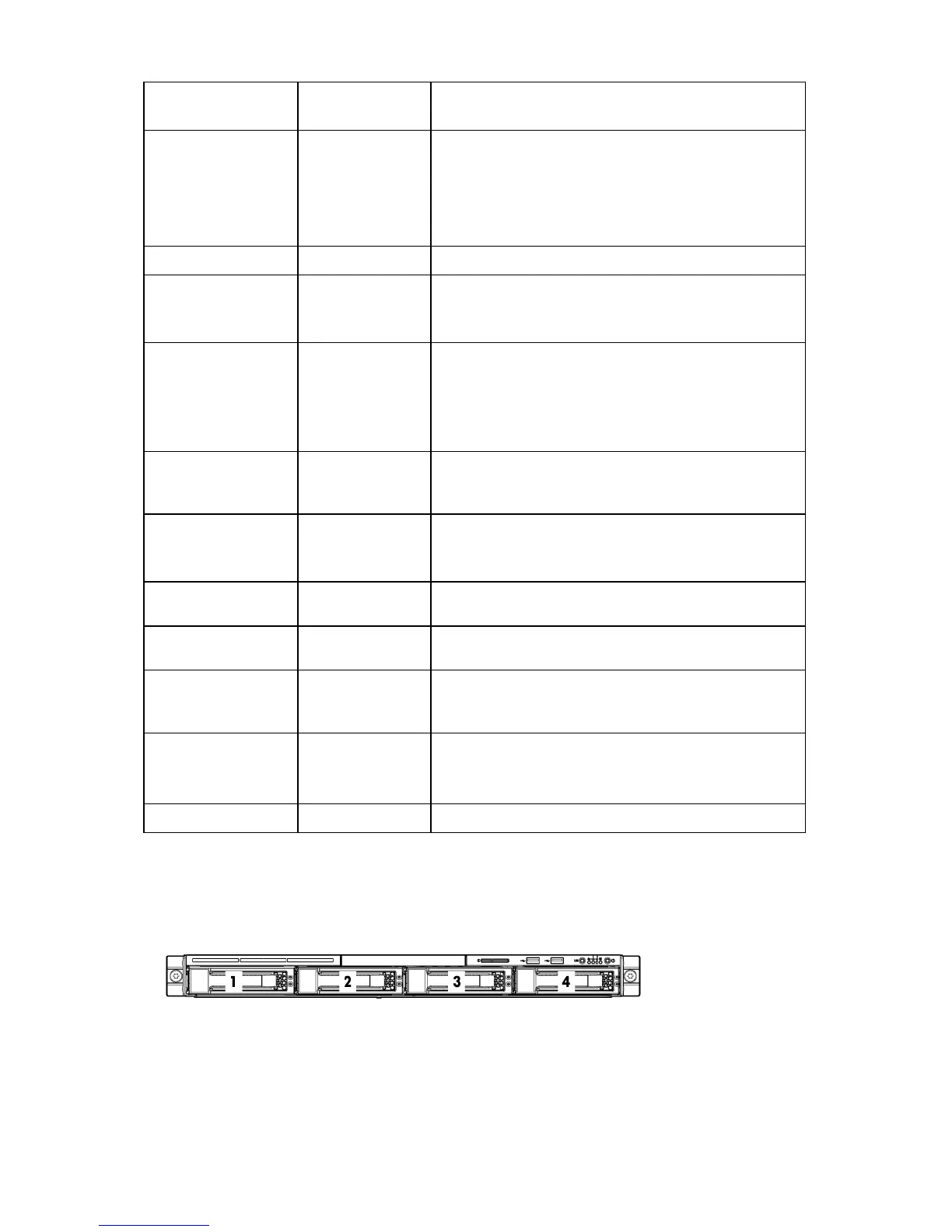

Component identification 69
System LED and
Color
Internal Health
LED Color
Status
Processor failure
(amber)
Red One or more of the following conditions may exist:
Processor has failed.
Processor is not installed in the socket.
Processor is unsupported.
ROM detects a failed processor during POST.
Amber Processor is in a pre-failure condition.
DIMM failure, slot X
(amber)
Red
DIMM in slot X has failed.
DIMM in slot X is an unsupported type, and no valid
memory exists in another channel.
Amber
DIMM in slot X has reached the single-bit correctable
error threshold.
DIMM in slot X is in a pre-failure condition.
DIMM in slot X is an unsupported type, but valid
memory exists in another channel.
DIMM failure, all slots
in one channel
(amber)
Red No valid or usable memory is installed in the system.
Amber
The entire channel is not populated.
DIMMs do not match within the channel, but other
valid memory is available.
Overtemperature
(amber)
Amber The Health Driver has detected a cautionary temperature
level.
Red The server has detected a hardware critical temperature
level.
Fan module (amber) Red The minimum fan requirements are not being met in one or
more of the fan modules. One or more fans have failed or
are missing.
Power supply (amber) Red One or more of the following conditions may exist:
There is no AC power.
The power supply has failed.
Amber There is a power supply mismatch at POST.
SAS and SATA device numbers
