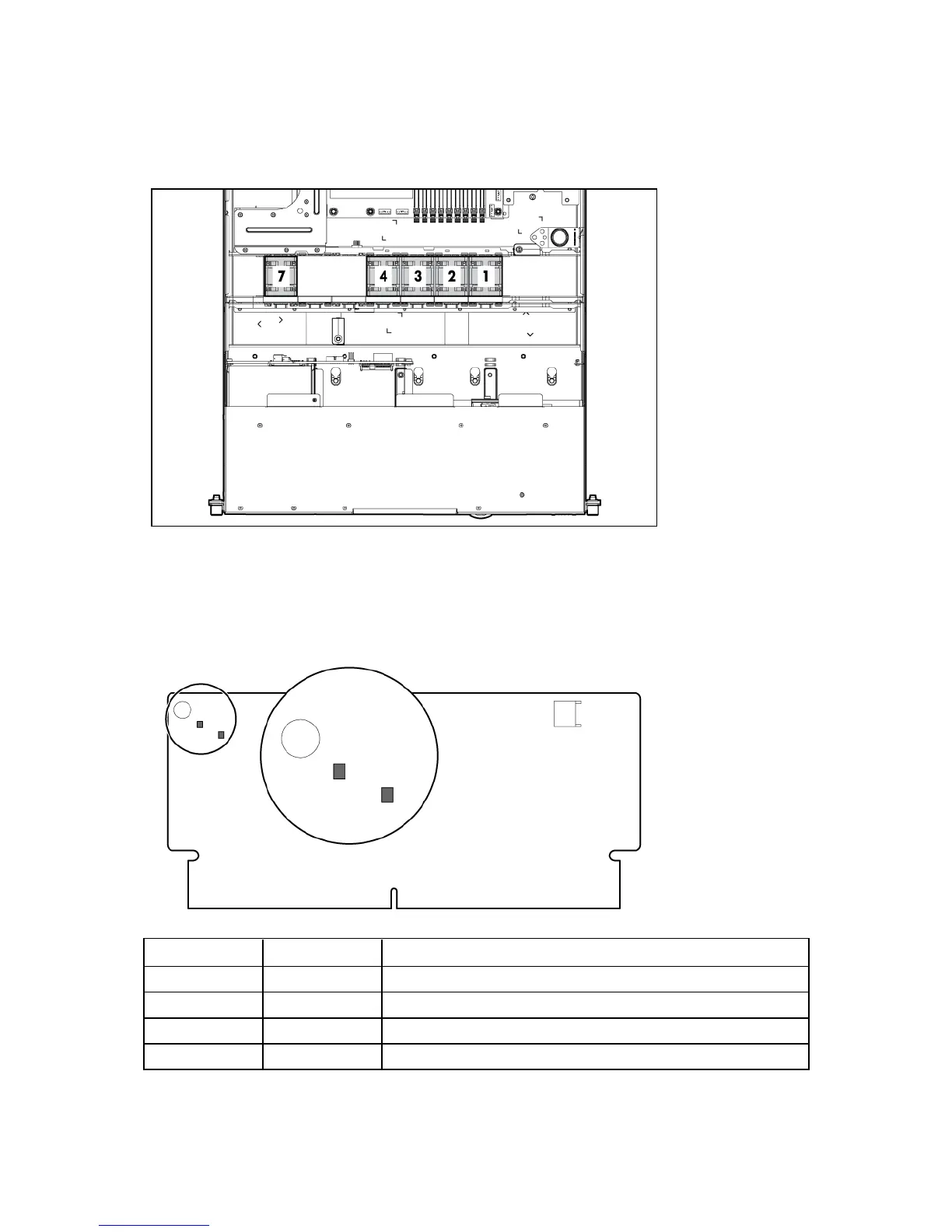

Fan locations
The fan in slot 5 is only available in CTO models of this server.
Fan slot 6 is reserved.
FBWC module LEDs
The FBWC module has two single-color LEDs (green and amber). The LEDs are duplicated on the reverse
side of the cache module to facilitate status viewing.
Green LED Amber LED Interpretation
Off On A backup is in progress.
Flashing (1 Hz) On A restore is in progress.
Flashing (1 Hz) Off The capacitor pack is charging.
On Off The capacitor pack has completed charging.
