Connectors, Switches, and Status Indicators
5-14 Compaq ProLiant DL360 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: MicroMachines Part Number: 169616-006 Last Saved On: 1/7/02 10:57 AM
System Board Status LED Indicators
The internal LEDs on the system board identify conditions that are relevant to service
personnel. Use the following figure and table to determine system board LED locations and
status.
4
132

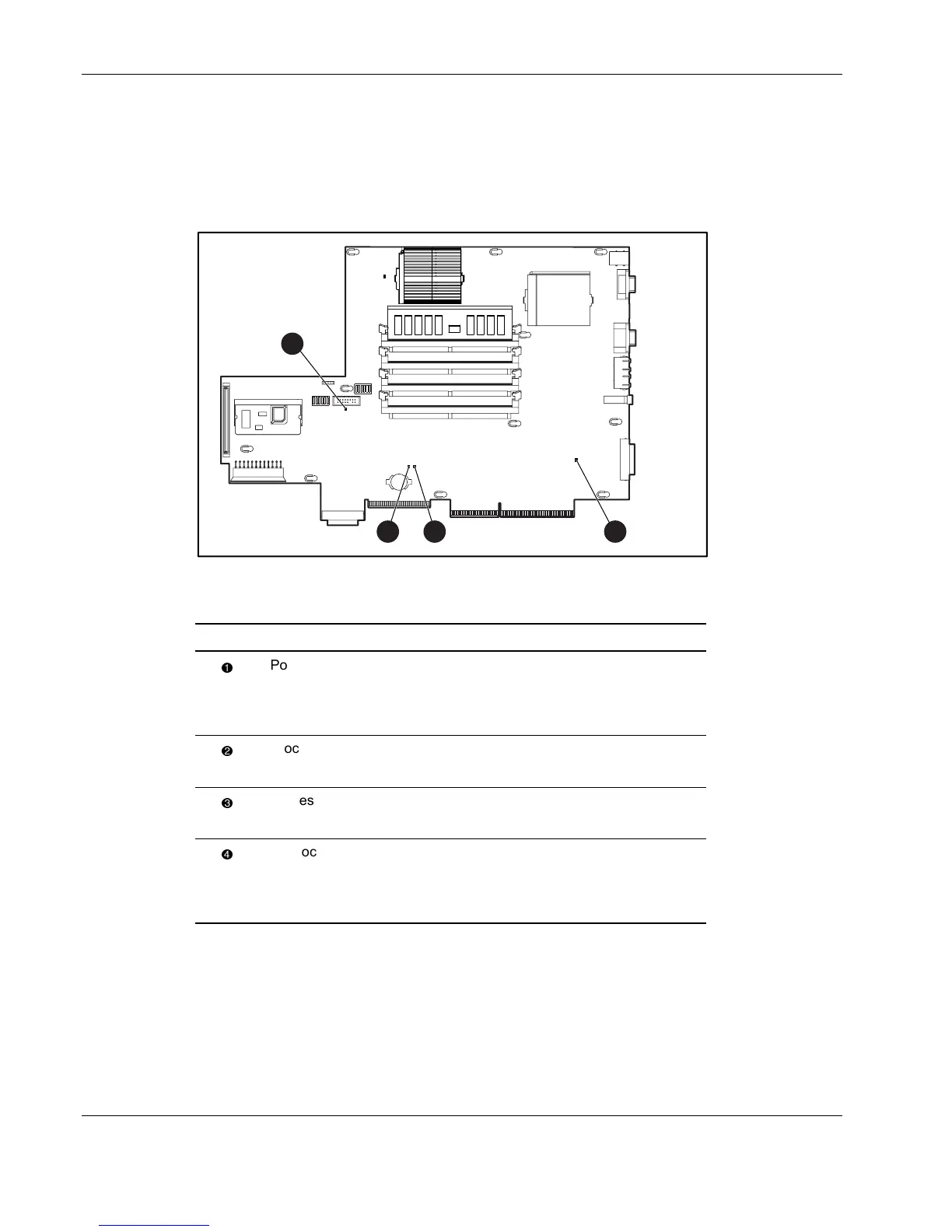

Figure 5-10: System board LEDs
Table 5-9: System Board Status LEDs
Item LED Description Status
Power status ON = 5V power source is active
(system is ON)
OFF = system in standby mode
or OFF
Processor 1 error (IERR1) ON = CPU 1 failed (Error found)
OFF = CPU 1 is operational
Processor 2 error (IERR2) ON = CPU 2 failed (Error found)
OFF = CPU 2 is operational
Interlock ON = PCI riser board assembly is
not fully seated or installed
OFF = PCI riser board assembly
is connected
