Processors
ProLiant DL360 servers can support up to two processors. When two processors are used,
they operate in an associated mode. Heatsink installation is critical to proper processor
operation, as indicated in the procedures below.
The following figure shows the location of the processor(s) on the system board.
2
1

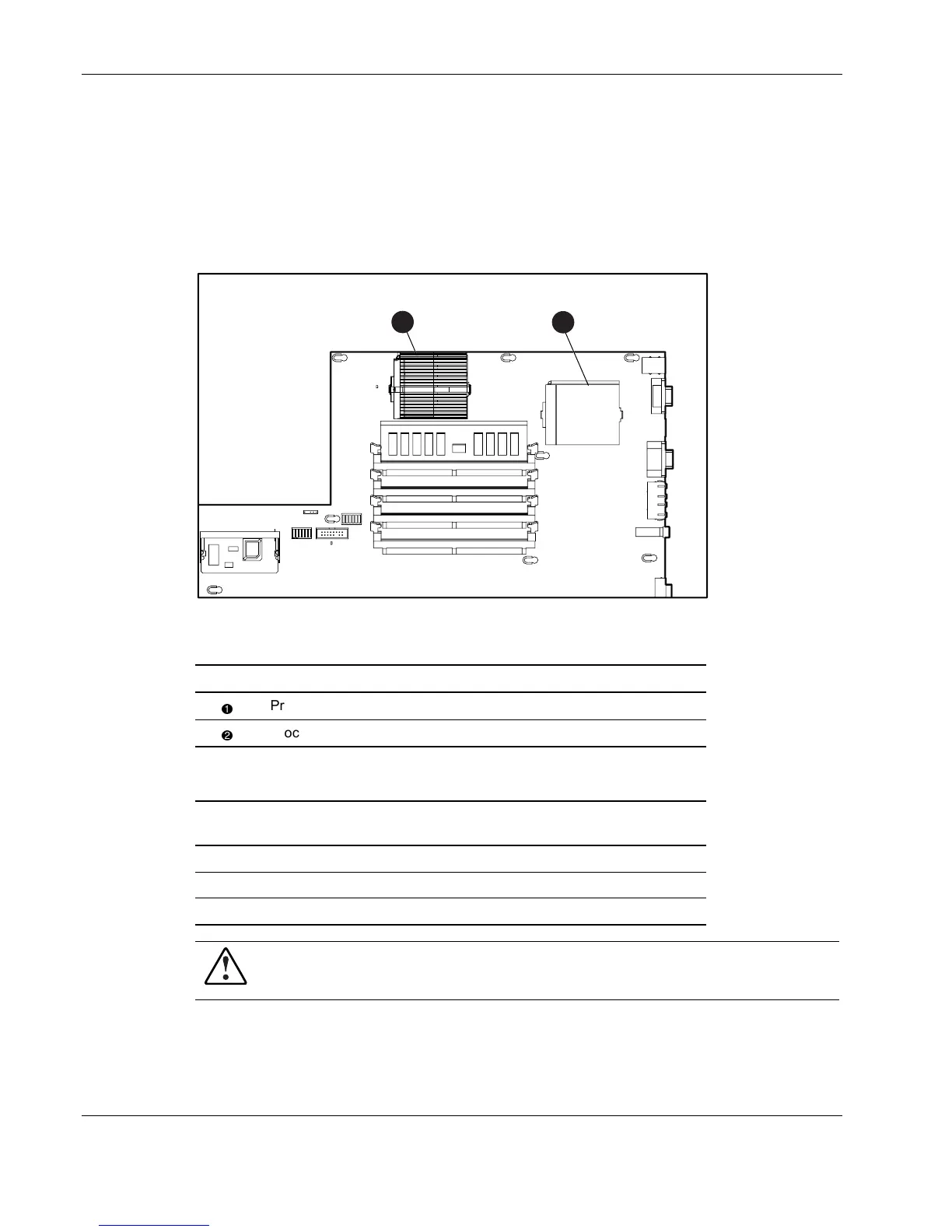

Figure 2-34: Processor and socket locations
Table 2-3: Processor and Socket Locations
Item Description
Processor socket 1 (must always be populated)
Processor socket 2 (only populated with second processor)
Table 2-4: System Board vs Processor Reference Chart
For Processor Speeds Requires System Board labeled
“Replace with Compaq Spares P/N”
550, 800, 866 or 933-MHz 173837-001
550, 800, 866, 933 or 1.0-Ghz 224928-001
1.13 or 1.26-GHz 239120-001
WARNING: To reduce the risk of personal injury from hot surfaces, allow the internal
system components to cool before touching.
