Server Component Identification 93
System LED and Color Internal Health LED
Color
Status
Fan (Amber) Amber Redundant fan has failed.
Red The minimum fan requirements are not being met. One or
more fans have failed or are missing.
SCSI configuration error
(Amber)
Red SCSI cabling or terminator configuration is incorrect for
SCSI backplane.

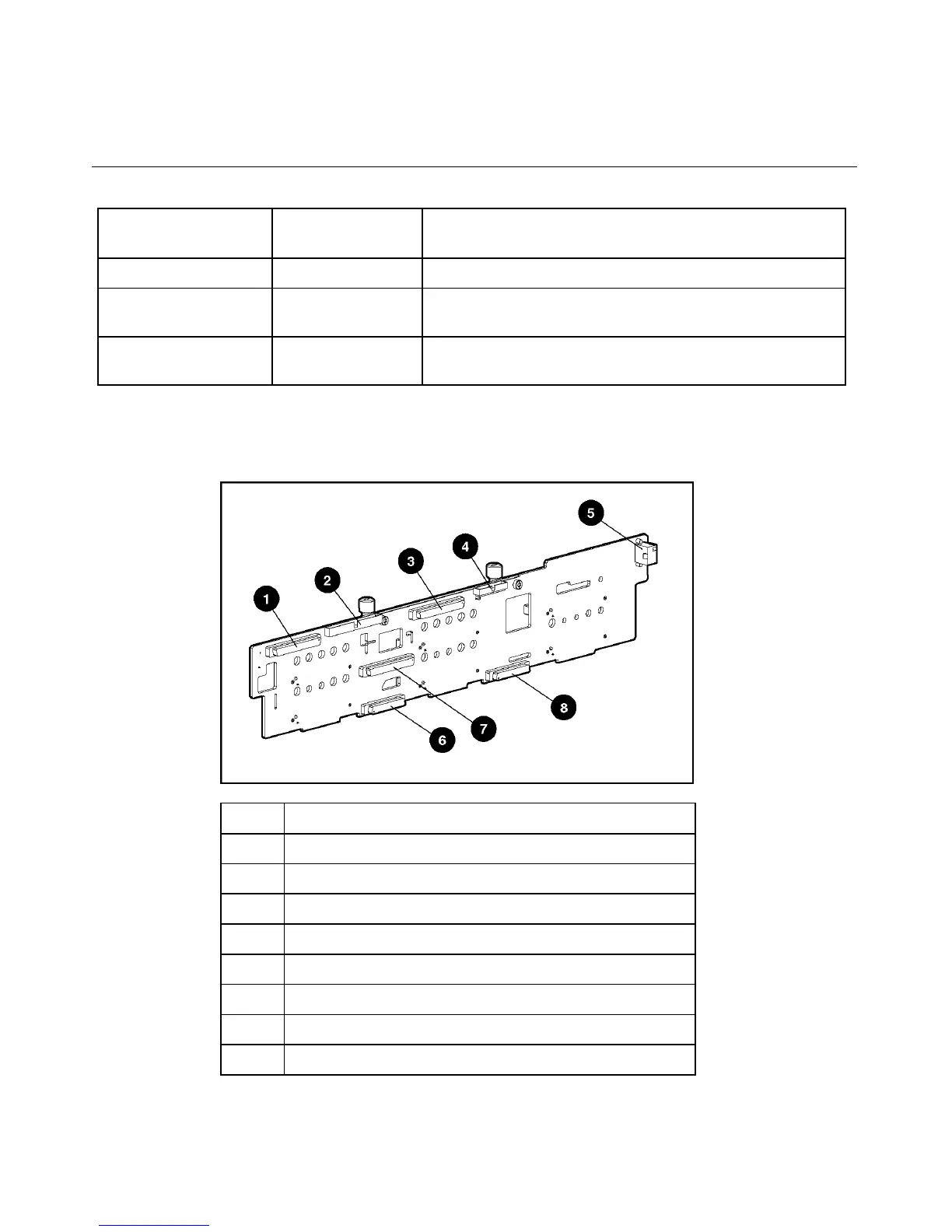

SCSI Backplane Components
Item Description
1 SCSI connector (port 2)
2 CD-ROM drive connector
3 SCSI connector (port 1)
4 Diskette drive connector
5 Power connector
6 CD-ROM drive system connector
7 SCSI connector (used with a jumper or terminator board)
8 Diskette drive system connector
