HP ProLiant DL380e Gen8 - Page 10

Component identification 10
Item Description
1
Riser board without SAS support: Slot 1 PCIe3 x8 (4, 1)
Riser board with SAS support: Slot 1 PCIe3 x16 (8, 4, 1)
2
Slot 2 PCIe3 x16 (8, 4, 1)
3
Only for riser board without SAS support: Slot 3 PCIe3 x8
(8, 4, 1)
4
Slot 4 PCIe2 x8 (4, 1)
5
LFF drive blank
6
Power supply 1
7
Power supply 2 (optional)
8
NIC connectors (4-1)
9
Torx tool
10
Serial connector
11
Video connector
12
USB connectors
13
iLO 4 connector

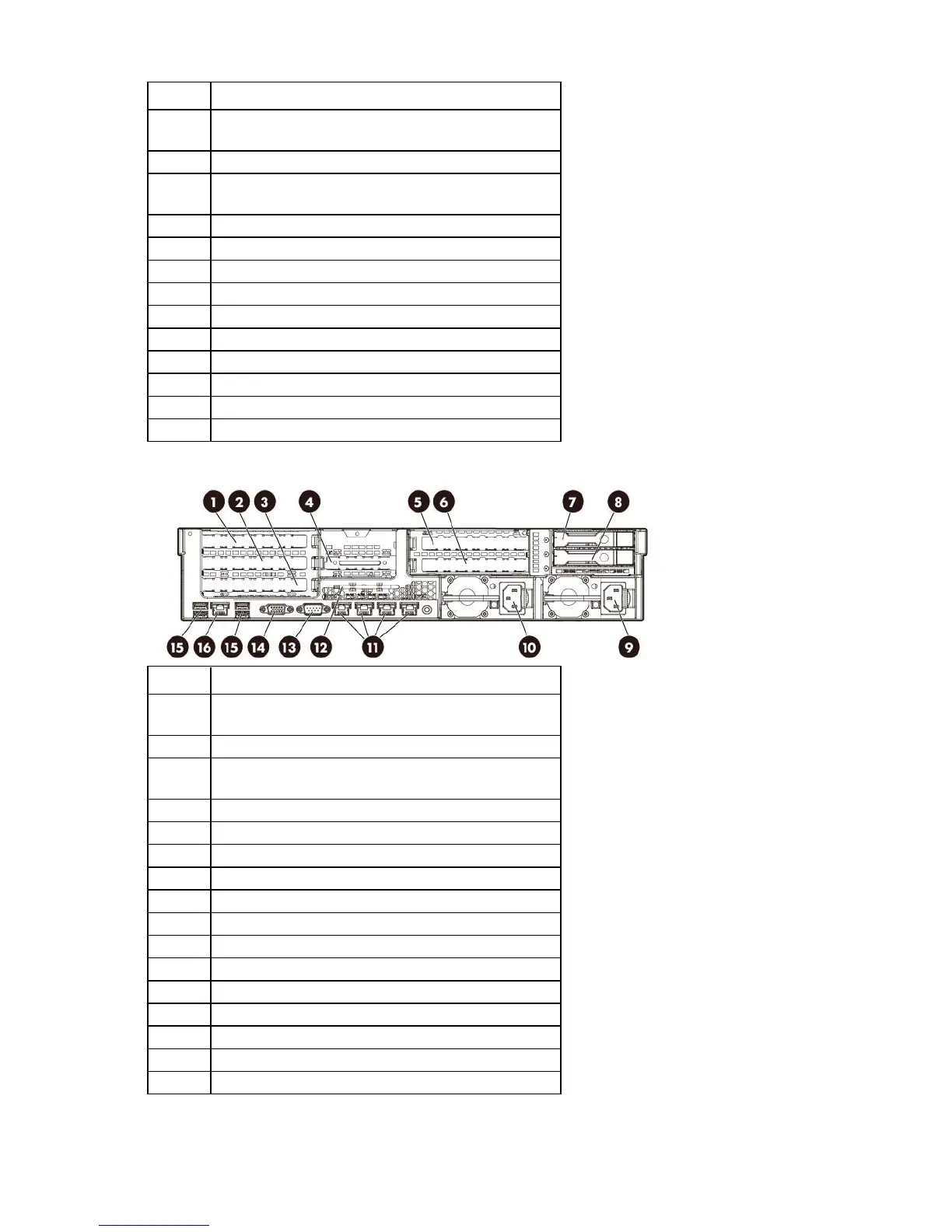

• Rear panel with the secondary PCI riser cage and 2 SFF rear drive options
Item Description
1
Riser board without SAS support: Slot 1 PCIe3 x8 (4, 1)
Riser board with SAS support: Slot 1 PCIe3 x16 (8, 4, 1)
2
Slot 2 PCIe3 x16 (8, 4, 1)
3
Only for riser board without SAS support: Slot 3 PCIe3 x8
(8, 4, 1)
4
Slot 4 PCIe2 x8 (4, 1)
5
Slot 5 PCIe3 x16 (16, 8, 4, 1) (optional)
6
Slot 6 PCIe3 x16 (8, 4, 1) (optional)
7
Rear SFF drive 1 (optional)
8
Rear SFF drive 2 (optional)
9
Power supply 1
10
Power supply 2 (optional)
11
NIC connectors (4-1)
12
Torx tool
13
Serial connector
14
Video connector
15
USB connectors
16
iLO 4 connector
