Component identification 9

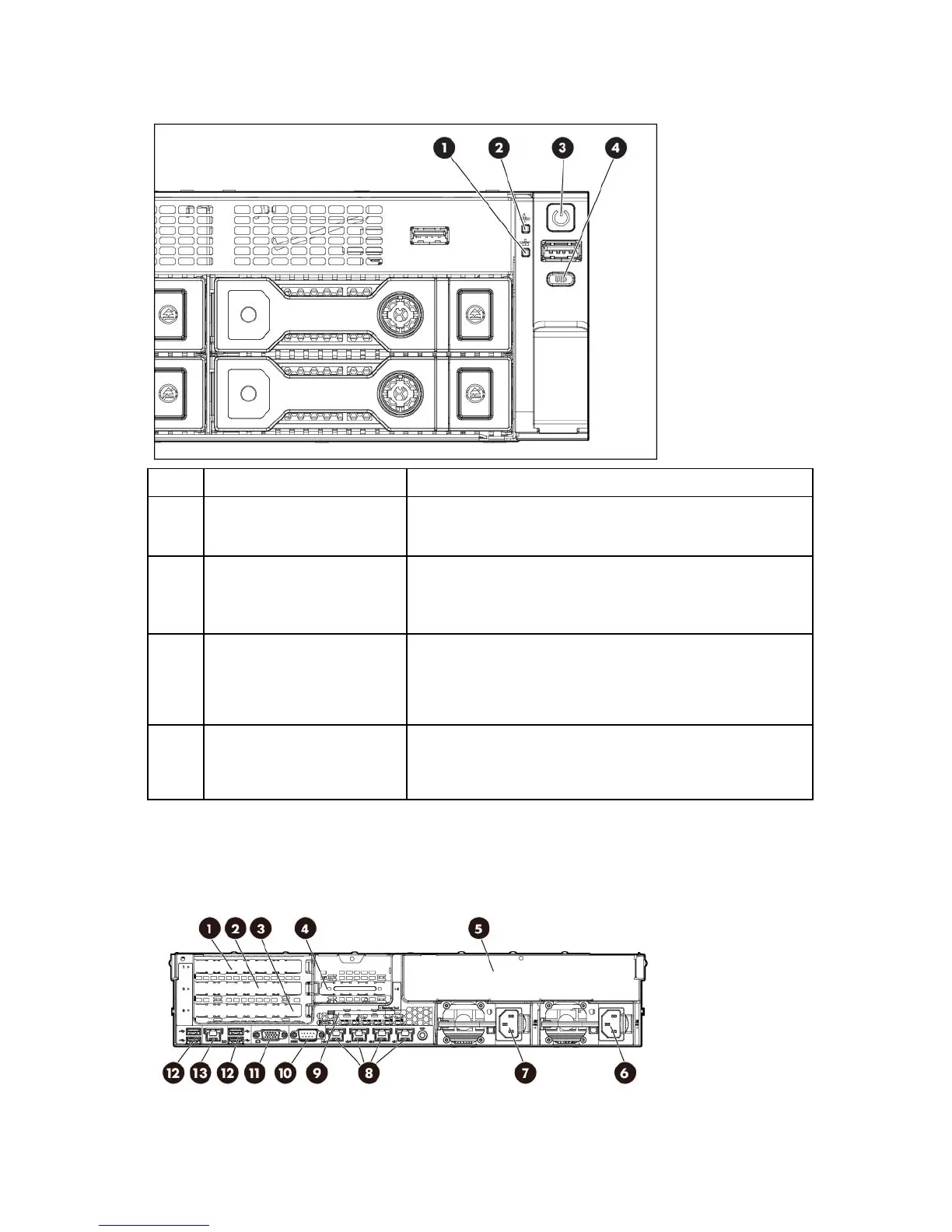

Front panel LEDs and buttons
Item Description Status
1
NIC status LED Green = Linked to network
Flashing green = Network activity
Off = No network link
2
Health LED Green = Normal (system on)
Flashing amber = System health is degraded
Flashing red = System health is critical
Off = Normal (system off)
3
Power on/Standby button and
system power LED
Green = Normal (system on)
Flashing green = Waiting for power
Amber = System in standby, but power still applied
Off = Power cord not attached or power supply failure
4
UID LED/button Blue = Activated
Flashing blue = System being remotely managed
Off = Deactivated
Rear panel components
• Rear panel without the secondary PCI riser cage and rear drive options
