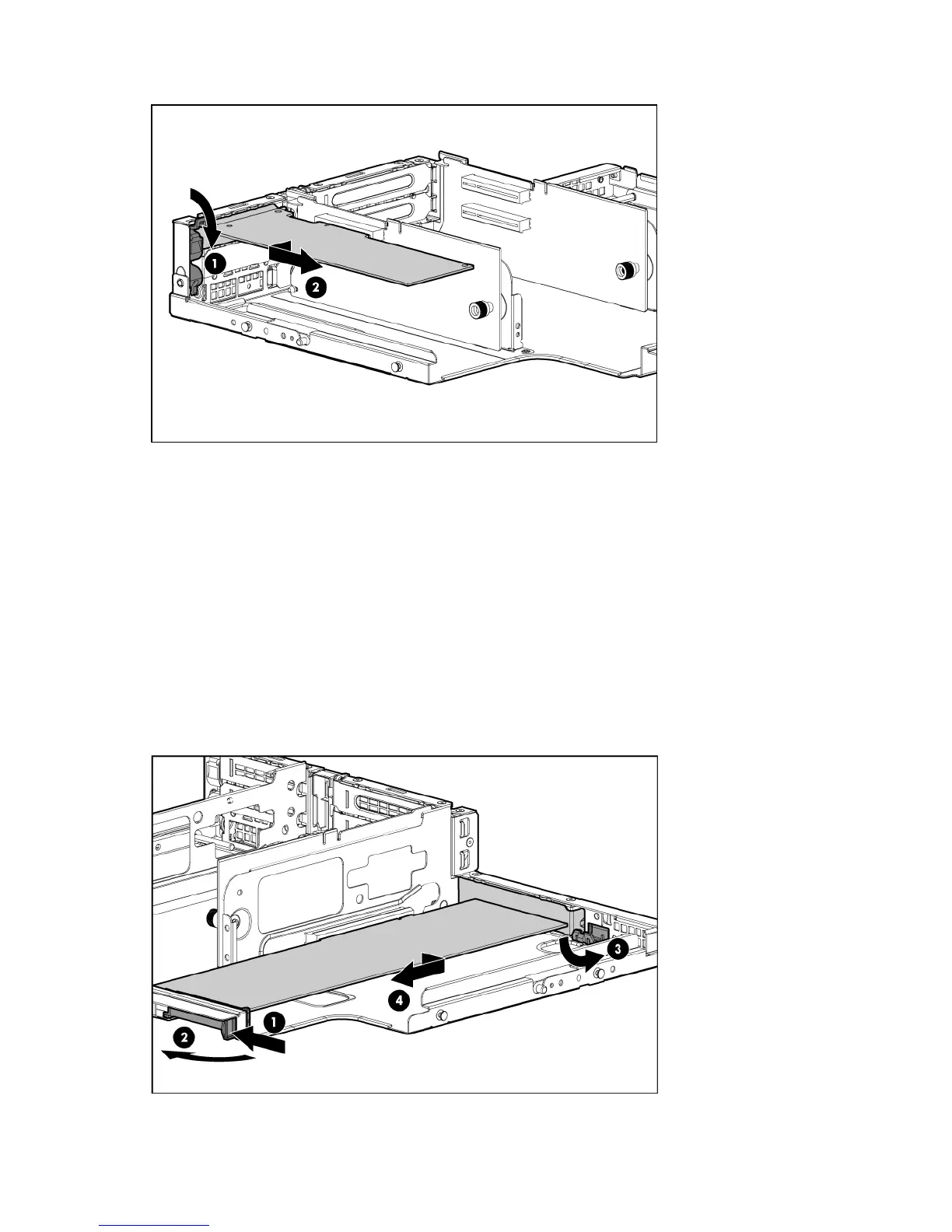

7.
Remove the expansion board.
To replace the component, reverse the removal procedure.
Full-length expansion board
To remove the component:
1. Power down the server (on page 26).
2. Extend the server from the rack (on page 25).
3. Remove the access panel ("Access panel" on page 30).
4. Disconnect any external cables that are connected to the expansion board.
5. Remove the PCI riser cage ("PCI riser cage" on page 38).
6. Disconnect any internal cables that are connected to the expansion board.
7. Remove the expansion board.
Removal and replacement procedures 43
