6.

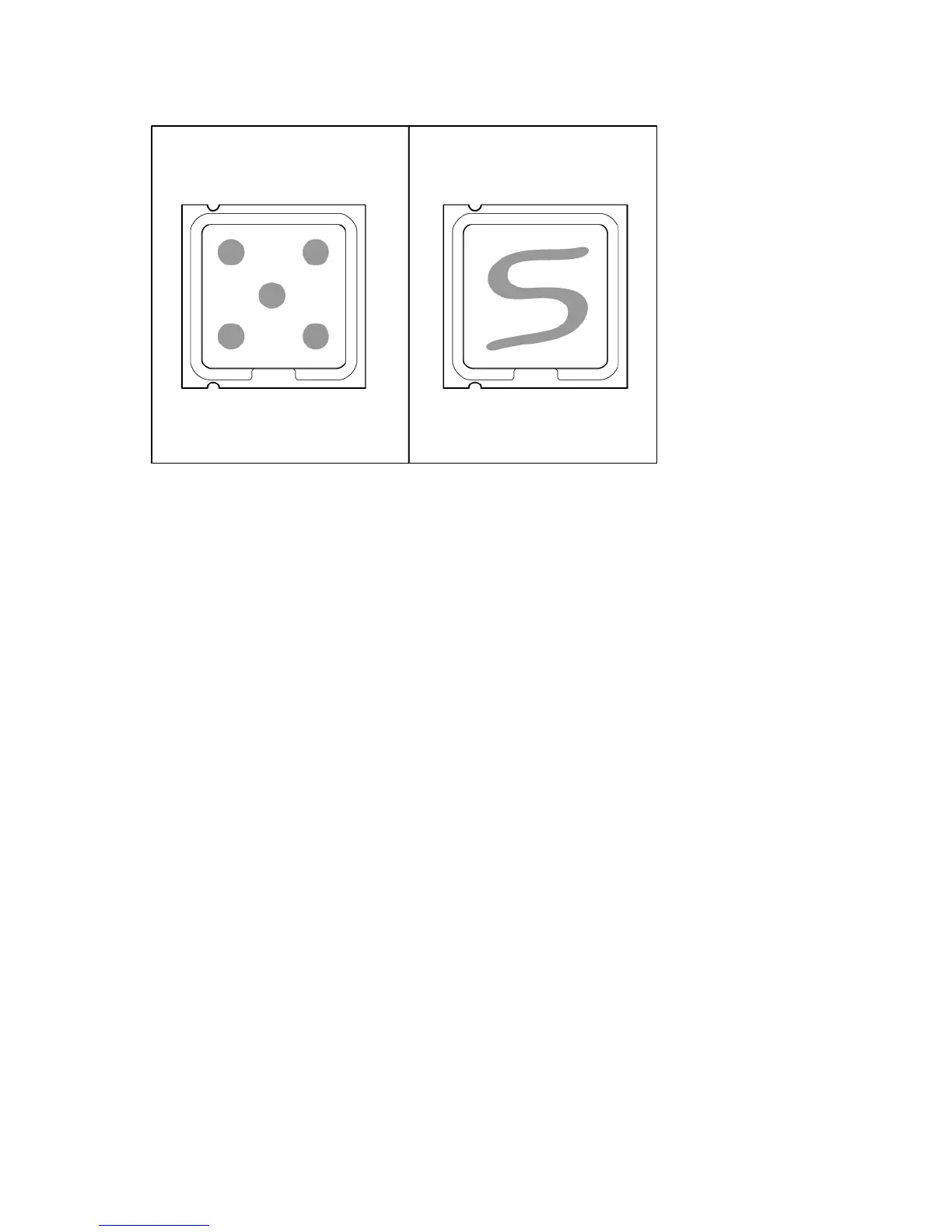

Apply all the grease to the top of the processor in one of the following patterns to ensure even
distribution:
7. Install the heatsink.
8. Close and lock the heatsink retaining latches.
9. Install the air baffle.
10. Install the PCI riser cage ("PCI riser cage" on page 38).
11. Install the access panel ("Access panel" on page 30).
12. Install the server into the rack.
13. Power up the server.
DIMMs
To remove the component:
1. Power down the server (on page 26).
2. Extend or remove the server from the rack ("Extend the server from the rack" on page 25, "Remove
the server from the rack
" on page 27).
3. Remove the access panel ("Access panel" on page 30).
4. Remove the PCI riser cage ("PCI riser cage" on page 38).
5. Remove the air baffle ("Air baffle" on page 39).
Removal and replacement procedures 53
