2.
Remove all power supplies ("Hot-plug power supply" on page 28).
3. Extend or remove the server from the rack ("Extend the server from the rack" on page 25, "Remove
the server from the rack
" on page 27).
4. Remove the access panel ("Access panel" on page 30).
5. Remove the PCI riser cage ("PCI riser cage" on page 38).
6. Remove the battery pack ("Removing the battery pack" on page 45).
7. Remove the air baffle ("Air baffle" on page 39).
8. Remove the power supply backplane ("Power supply backplane" on page 35).
CAUTION: To prevent damage to the server or expansion boards, power down the server and
remove all AC power cords before removing or installing the PCI riser cage.
9. Remove the hot-plug fans from the fan cage ("Hot-plug fan" on page 36).
10. Remove the fan cage ("Fan cage" on page 39).
11. Remove all DIMMs ("DIMMs" on page 53).
12. Remove the heatsink ("Heatsink" on page 46).

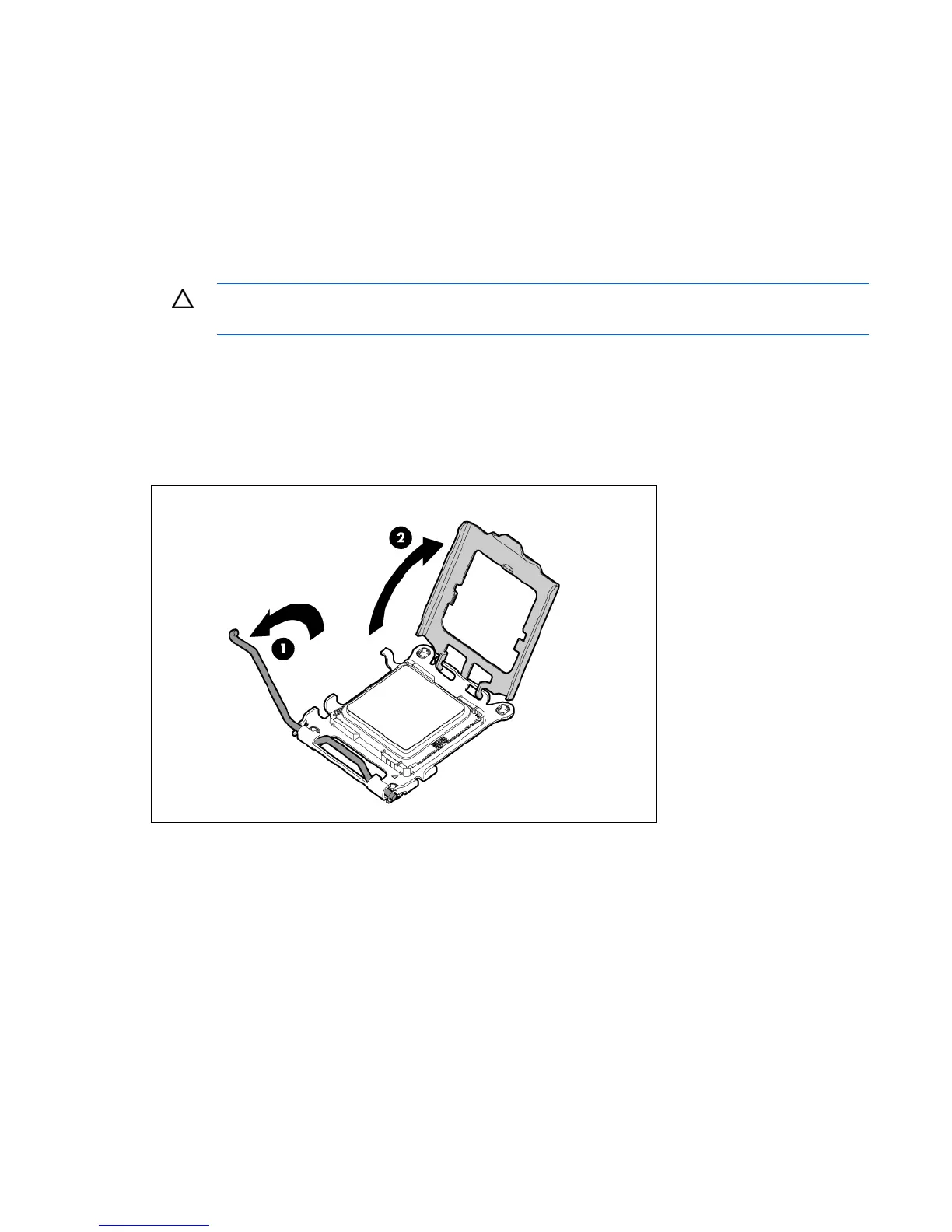

13. Open the processor retaining latch and the processor socket retaining bracket.
Removal and replacement procedures 57
