Component identification

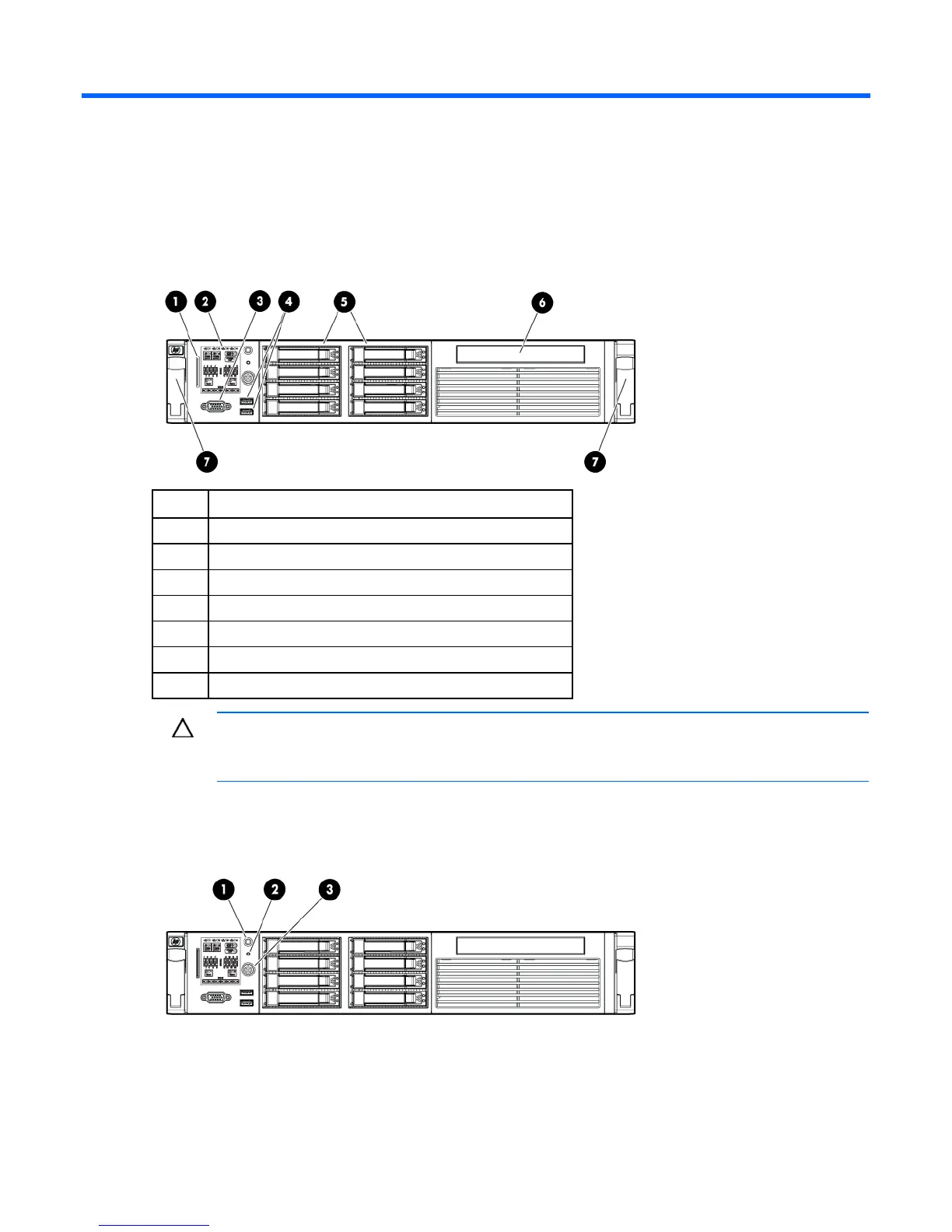

Front panel components
Item Description
1 Serial number label
2 Systems Insight Display
3 Video connector
4 USB connectors (2)
5 Hard drive bays
6 SATA optical drive bay
7 Quick release levers (2)
CAUTION: For proper cooling do not operate the server without the access panel, baffles,
expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize
the amount of time the access panel is open.
