Removal and replacement procedures 62
4.

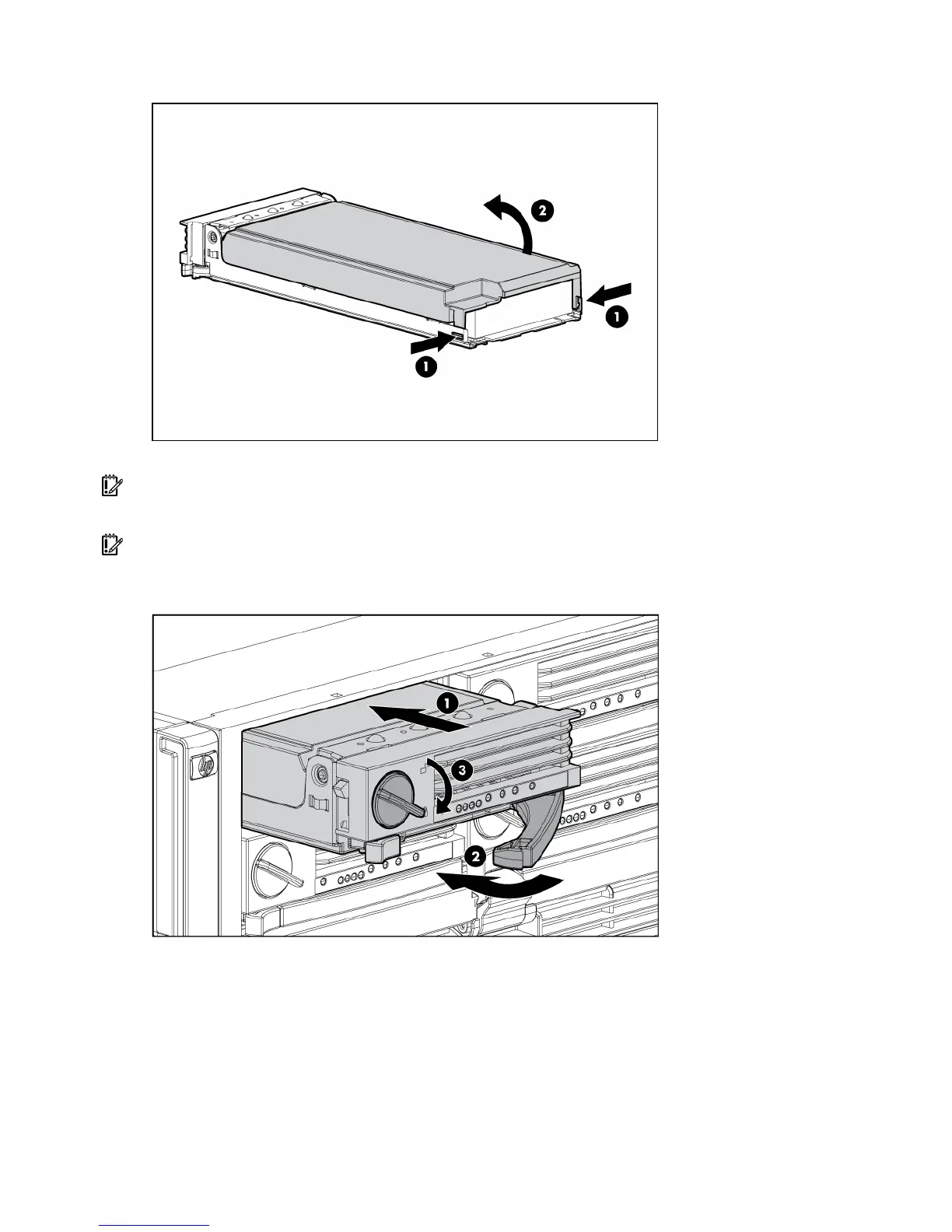

Open the memory board.
5. Replace the DIMM ("Removing DIMMs" on page 63).
IMPORTANT: Be sure to observe all DIMM installation requirements for the desired memory mode.
6. Close the memory board.
IMPORTANT: Be sure that the locking switch is unlocked. The memory board will not seat in the server if
the locking switch is locked.
7. Install the memory board.
8. Close the ejector lever, and lock the locking switch.
9. Power up the server.
10. Reference the memory board LEDs ("Memory board components and LEDs" on page 74) to be sure
that the memory board is functioning properly.
Removing a memory board
1. Power down the server if the server is not configured for hot-plug RAID memory or hot-plug mirrored
memory.
