HP Proliant DL580 G4 - Page 92

Server cabling 92

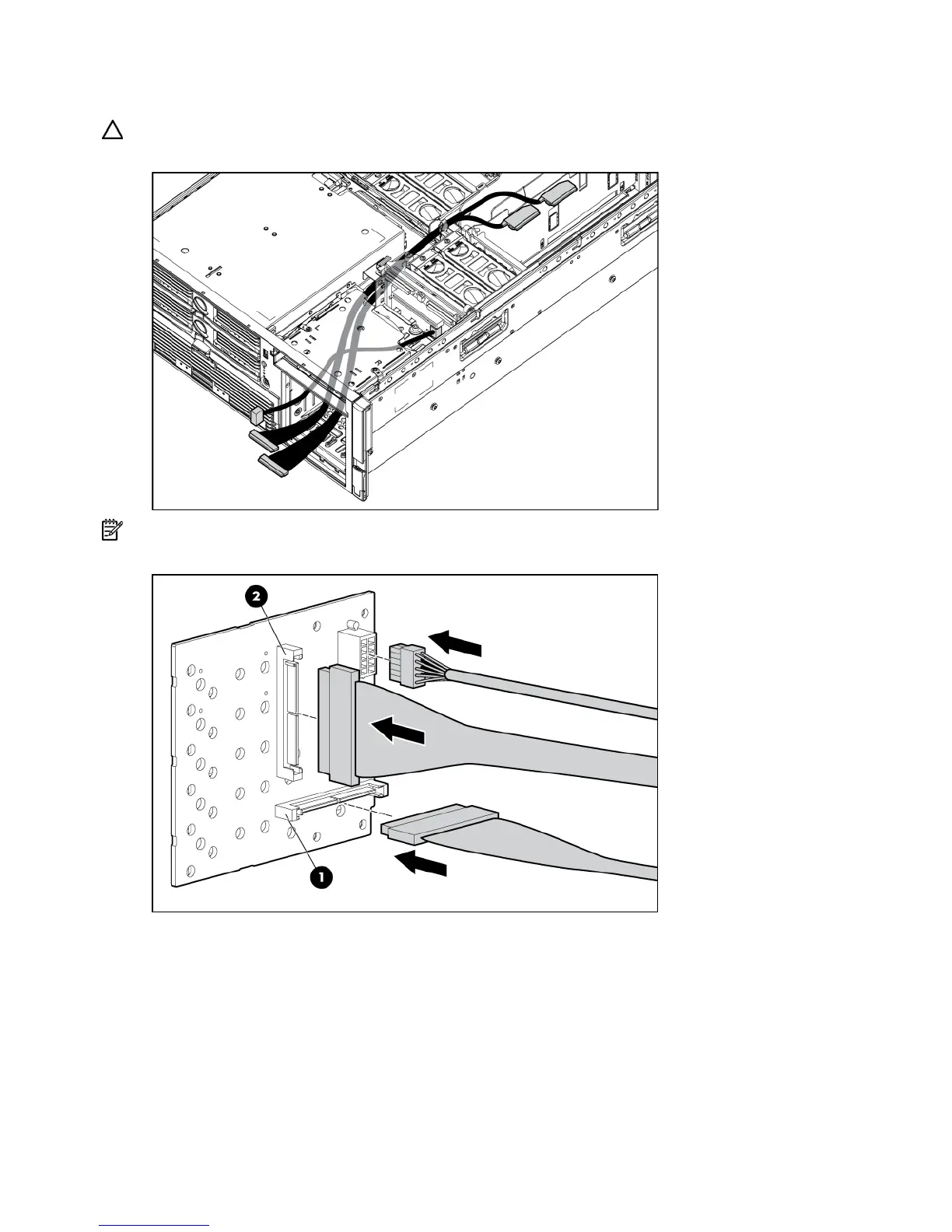

Hot-plug SAS and SATA hard drive cabling
CAUTION: When routing cables, always be sure that the cables are not in a position where they can be
pinched or crimped.
NOTE: Port 1 supports hard drives 1 through 4. Port 2 supports hard drives 5 through 8. If you are using a
single cable SAS controller, connect the cable to port 1.
