Front bezel
You must remove the front bezel to access the hard drives and optical drives.
To remove the front bezel:
1. Remove the access panel.
2. Remove the front bezel:
a. Press in on the two bottom tabs on the side of the bezel so that they release from the chassis.
b. Press in on the upper tab on the side of the bezel so that it releases from the chassis. The bezel will
rotate out slightly.
c. Pull the bezel away from the front panel.

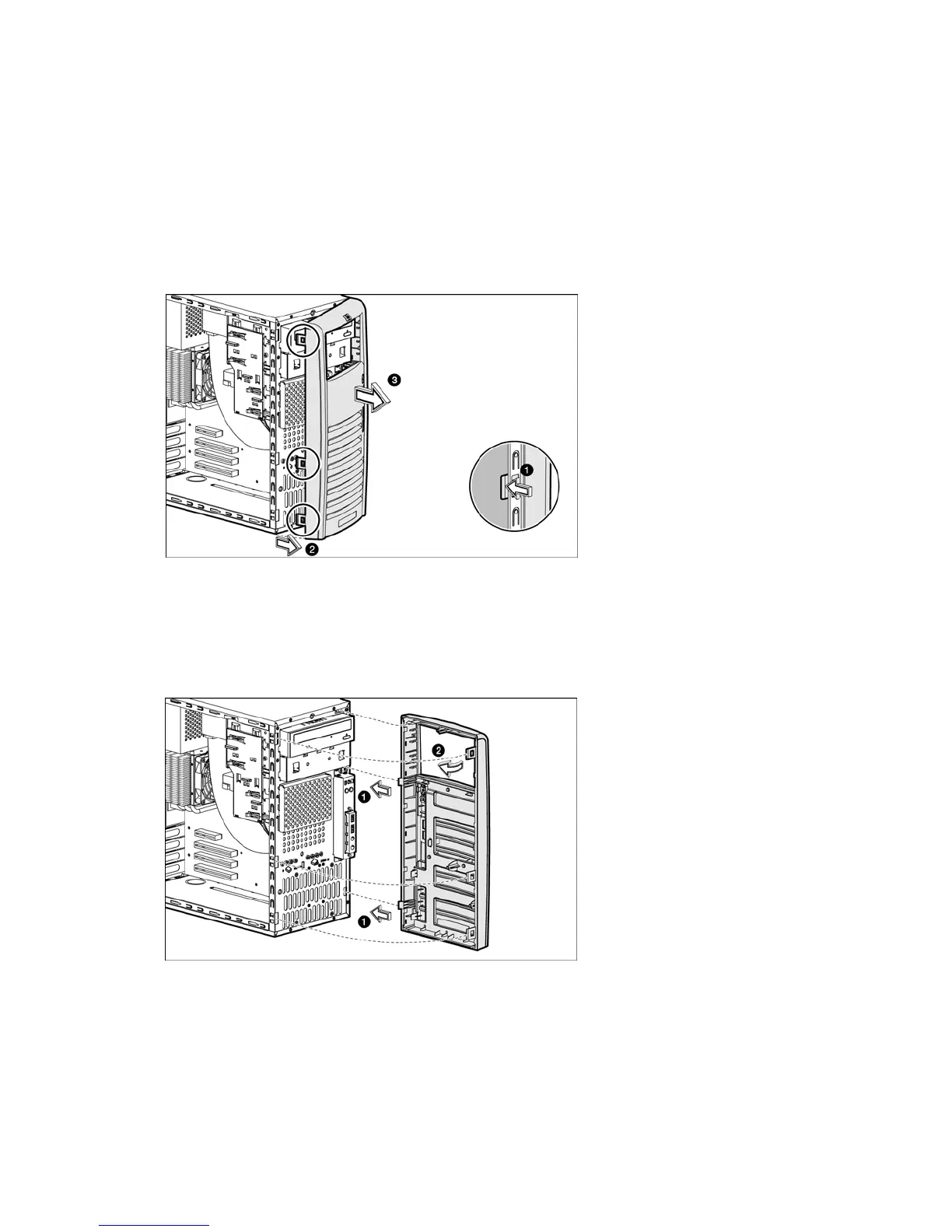

Figure -3 [Removing the front bezel]
3. Place the front bezel in a safe place for reinstallation later.
To replace the front bezel, follow the steps below:
1. Position the chassis in the upright position.
2. Insert the two hooks on the right side of the bezel into the rectangular holes on the chassis, and then rotate
the bezel into place so that the three tabs on the left side of the bezel snap into the slots on the chassis.
Figure -4 [Reinstalling the front bezel]
