4 Connectors, switches, and LEDs
This chapter contains illustrations and tables identifying and describing the connectors, switches, buttons, and
LED indicators located on the front panel, rear panel, system board and hard drives of the HP ProLiant ML110
Generation 3 server.
Connectors and components
This section contains illustrations and tables identifying connectors and components on the front and rear panels
of the server, as well as those located on the system board.
Front panel components
Figure -1 and the following table show and describe the components on the front panel of the server.

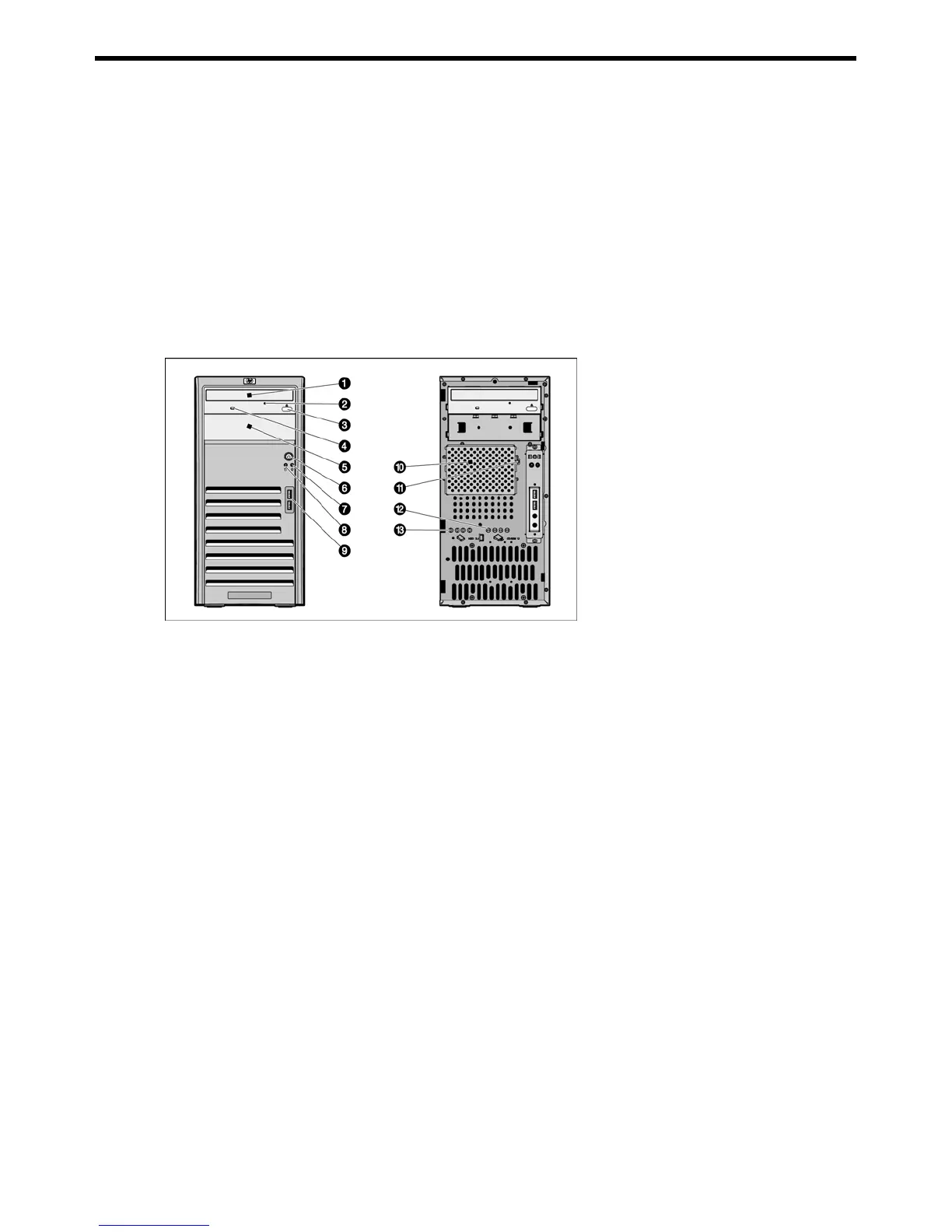

Figure -1 [Front panel components]
1 Optical drive 8 Drive activity indicator
2 Optical drive manual eject hole 9 Front USB 2.0 ports
3 Optical drive eject button 10 Hard drive EMI shield
4 Optical drive activity indicator 11 Hard drive EMI shield screw
5 Half-height common bay 12 Optical drive spare screws
6 Power button 13 Hard drive spare screws
7 Power LED indicator
