Mechanical parts exploded view

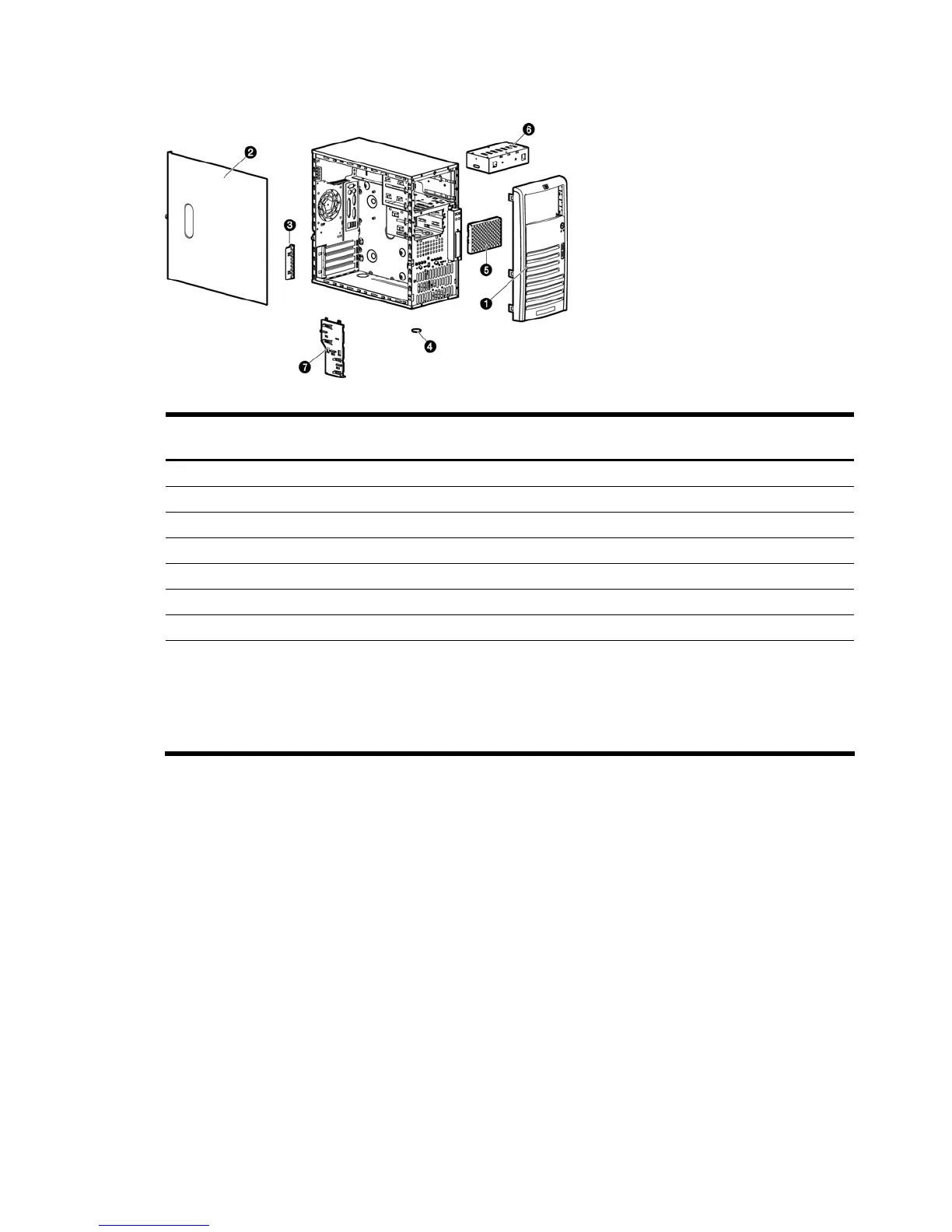

Figure -1 [Mechanical parts exploded view]
Table -1 Mechanical spare parts list
Item
Description
Assembly
number
Spare part
number
Customer
self repair
1 Front bezel 391980-001 392174-001 Mandatory
2 Access panel 396648-001 397120-001 Mandatory
3 Expansion slot cover lock (included in Misc Hardware Kit) 397084-001 ---- Mandatory
4 Foot (included in Misc Hardware Kit) 166939-007 ---- Mandatory
5 Hard drive EMI shield 395015-001 395624-001 Mandatory
6 Optical drive shield 395019-001 395625-001 Mandatory
7 Drive release latch 395020-001 397122-001 Mandatory
8 Misc Plastics/Hardware Kit *, including:
• Screw, 6-32x.187,TF,HI/TP w/serr (10)
• Screw, M3,TT,HI/TP,S15IPX5mm (10)
• Feet (4)
• Expansion slot cover lock
• Thumbscrew, 6-32 X .25, Cbn
---- 397119-001 Mandatory
