HP ProLiant ML110

System Configuration
e. Connect the drive data cable to its connector on the rear of the drive.

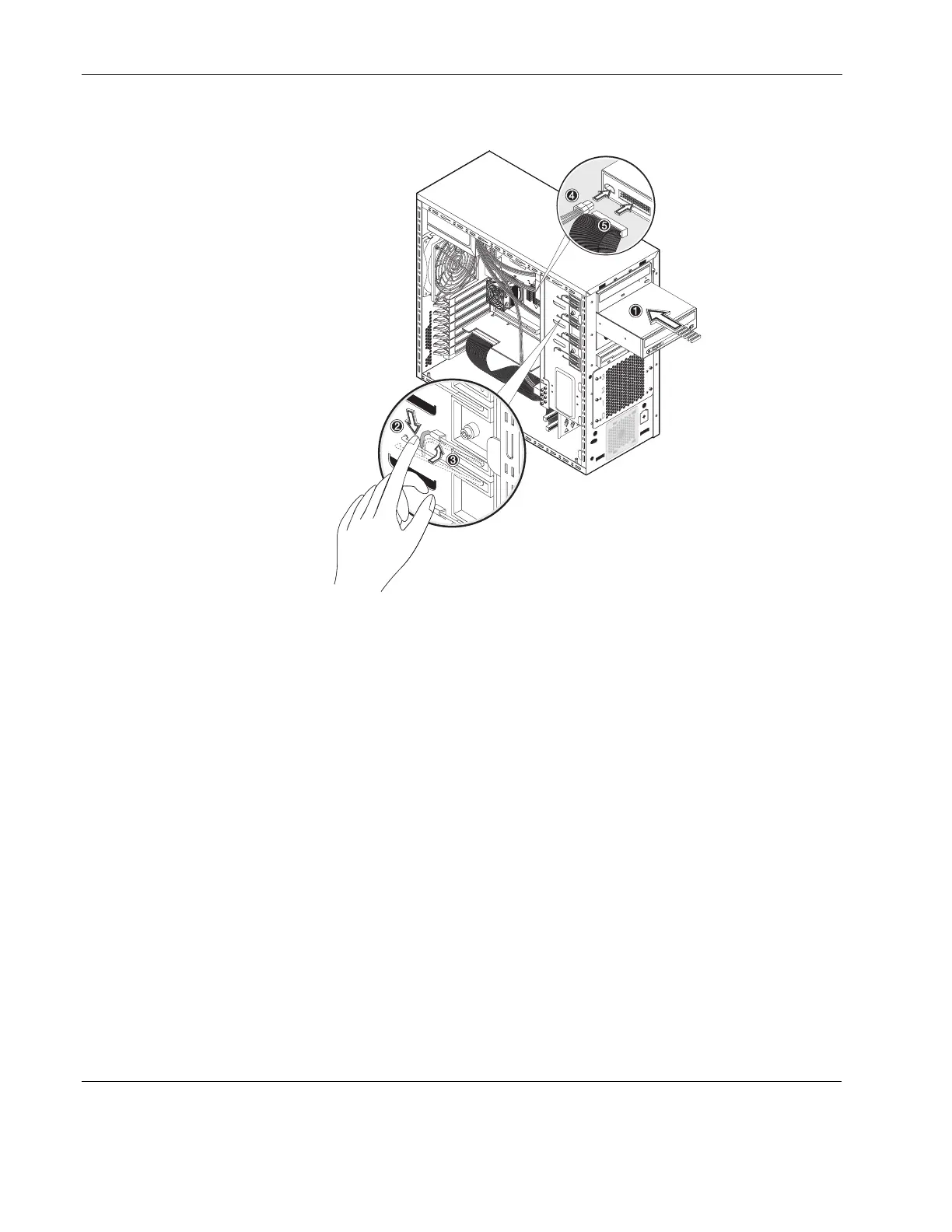

Figure 4-10: Installing a drive in the common bay
8. Observe the post-installation procedures.
HDD Cage
The HDD cage located on the lower front panel supports four non-hot swappable PATA or
SCSI drives.
To Install a Drive in the HDD Cage
1. Perform steps 1 through 3 of the pre-installation instructions.
2. Remove the left-side cover.
3. Remove the front bezel.
4. Remove the HDD cage from the server:
The first two substeps below assume that there is a drive currently installed in the cage. If
the cage is empty, go directly to substep (c).
a. Disconnect the power cable from the rear of the drive.
b. Disconnect the data cable from the rear of the drive.
4-12 HP ProLiant ML110 Server Operations and Maintenance Guide
